# Built-In TV Wall Units Toronto: 2026 Design Guide

A built-in TV wall replaces a free-standing media console with millwork that integrates the TV, sound system, cable management, and storage into a single architectural feature. In 2026, a typical built-in TV wall in Toronto runs $6,500–$18,000 depending on width, materials, and whether an electric fireplace is integrated. This guide covers layout, dimensions, cable management, fireplace integration, and the design choices specific to Toronto homes. For the broader category, see [Built-Ins & Millwork Toronto: Complete 2026 Guide](/blog/built-ins-millwork-toronto-2026).

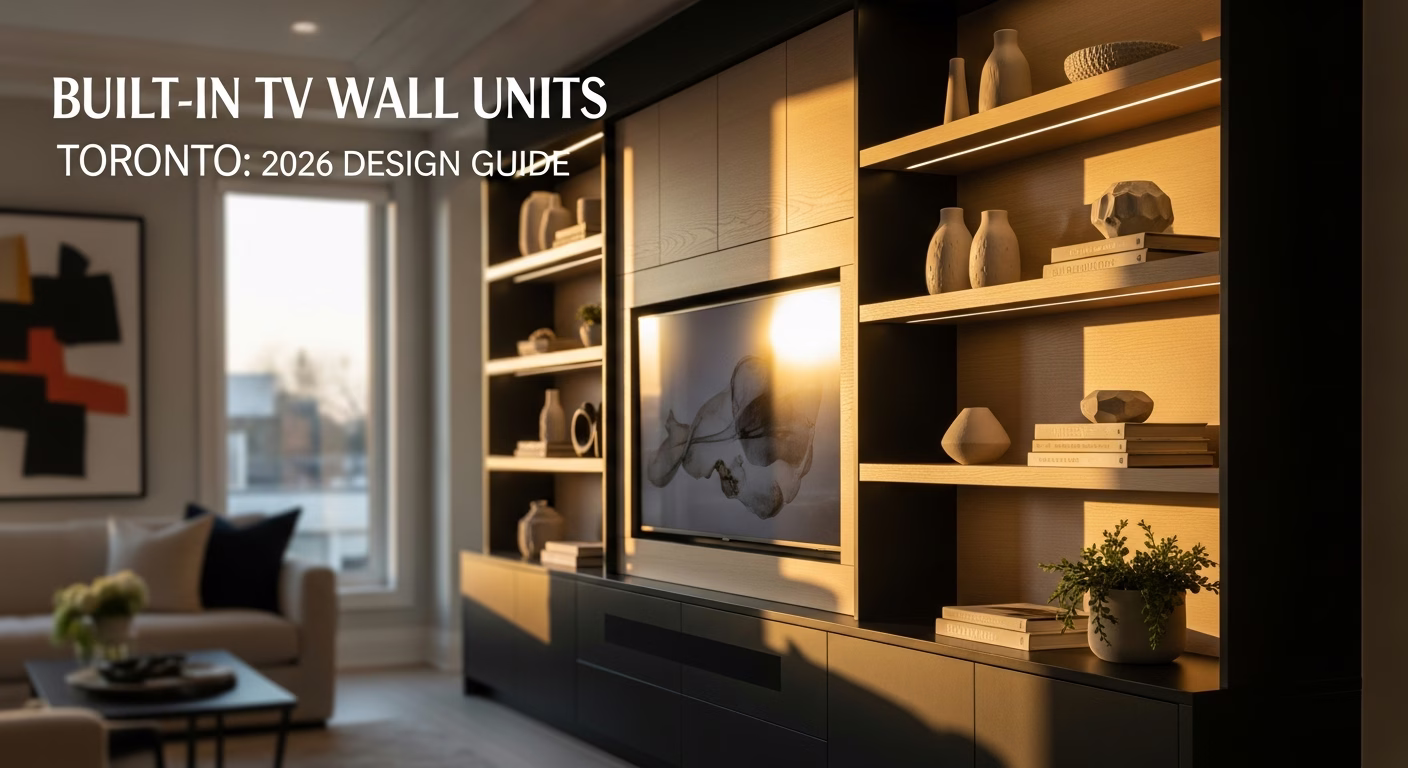

Standard Layout

A built-in TV wall typically includes three zones:

• 1. Base cabinets (24"–32" tall) for media equipment, with a centre opening for the receiver and ventilation.
• 2. TV mount zone with the TV centred at 42"–48" from finished floor (measured to centre of screen).
• 3. Upper shelving or cabinets flanking and above the TV.

Width ranges from 8' to 16'. Depth at the base is typically 18"–22"; upper shelving is 12"–14".

TV Sizing and Placement

Common TV sizes drive the design:

• 65" TV — 57" wide, requires a centre opening of 60" minimum.
• 75" TV — 66" wide, requires a centre opening of 70" minimum.
• 85" TV — 75" wide, requires a centre opening of 80" minimum.

Mounting height: bottom of TV is typically 32"–36" from finished floor for seated viewing. For wall heights over 9', the TV often sits on a recessed niche above a 36" mantel-height base.

Cable Management

Three approaches:

• In-wall conduit — a 2" PVC sweep behind the TV running down to the base cabinet. Hides HDMI, power, and speaker cables. Adds $200–$400 in materials and electrician time. Standard on Tier 2 and Tier 3 projects.
• Surface raceway — a paintable channel covering cables on the wall surface. Visible but functional. Used in rentals or condo installs where wall-cutting is not allowed.
• Behind-cabinet routing — cables run through holes drilled in cabinet boxes, hidden behind shelves and equipment.

For Toronto condos, in-wall conduit requires verification that the wall is not concrete shear wall. Most demising walls between units are concrete; most interior partition walls are stud-frame.

Electric Fireplace Integration

A common 2026 upgrade is an electric fireplace insert built into the base cabinets below the TV. Common units:

• Dimplex Multi-Fire XHD 28"–50" — 1,400W heater, plug-in 120V, $700–$1,400 unit cost.
• Napoleon Allure 32"–60" — wall-mount or recessed, $900–$2,200 unit cost.
• Modern Flames Orion 52"–80" — premium tier, $2,200–$4,500 unit cost.

Heat clearance: most electric inserts require 12" clearance above the unit to combustible material. Verify before placing the TV directly above. A non-combustible mantel shelf or stone surround is the typical solution.

Materials

Tier 2 (the dominant choice) uses:

• 3/4" plywood cabinet boxes.
• MDF shaker doors, painted.
• Plywood shelves with hardwood edge banding.
• Blum soft-close hardware.

Tier 3 upgrades to hardwood face frames and doors (white oak, walnut). See [MDF vs Plywood for Built-Ins Toronto](/blog/mdf-vs-plywood-built-ins-toronto).

Pricing Tiers

Toronto Condo Considerations

Condos add three constraints:

• 1. Wall type — concrete demising walls require Tapcon or Hilti anchors. No in-wall conduit possible.
• 2. Power location — most condo TV walls have a single outlet at floor level. Adding a high outlet for the TV requires an electrician and condo board permission for any wall-cutting.
• 3. Ceiling height — most condos are 8'6"–9'0". A full-height media wall fits but tall stacks above the TV may look cramped.

Sound System Integration

Three approaches:

• Soundbar on shelf below TV — simplest. The shelf below the TV is sized at 6"–8" tall, 36"–48" wide.
• In-wall speakers — left/right speakers built into the millwork, centre channel below TV. Adds $400–$1,200 plus speaker cost.
• No integrated audio — TV speakers only. Acceptable for casual viewing.

Common Mistakes

Three failures common in Toronto built-in TV walls:

• 1. No ventilation for receiver — closed cabinets without venting overheat receivers and game consoles. Cut a 4" vent in the back panel or use slatted doors.
• 2. TV centred on wall, not on seating — measure from the sofa, not the wall.
• 3. Mantel above electric fireplace too close to TV — verify heat clearance with the fireplace manufacturer.

See [Built-Ins Installation Mistakes Toronto](/blog/built-ins-installation-mistakes-toronto) for a fuller list.
