New Garage Door Installation in the GTA

Garage door installation in Toronto in 2026 hits two compounding deliverables on a 1990s-or-earlier GTA detached: meaningful winter air-leakage reduction on the attached-garage-to-dwelling envelope (a 1990s non-insulated 24-gauge steel sectional door leaks 50-80 CFM at 50 Pa per ASTM E283, while a modern R-18 insulated Garaga Cambridge or Steel-Craft Premier Plus seals at 8-15 CFM in the same opening), and curb-appeal lift (carriage-house insulated doors with full-view glass top sections routinely add $4,000-$8,000 in listing uplift on a market-stage detached). And on attached garages where the garage shares a ceiling with living space above (most GTA 1980s-onwards stock), the OBC 9.10.9.16 1-hour fire separation requirement makes the garage-door scope an integrated envelope + safety upgrade.

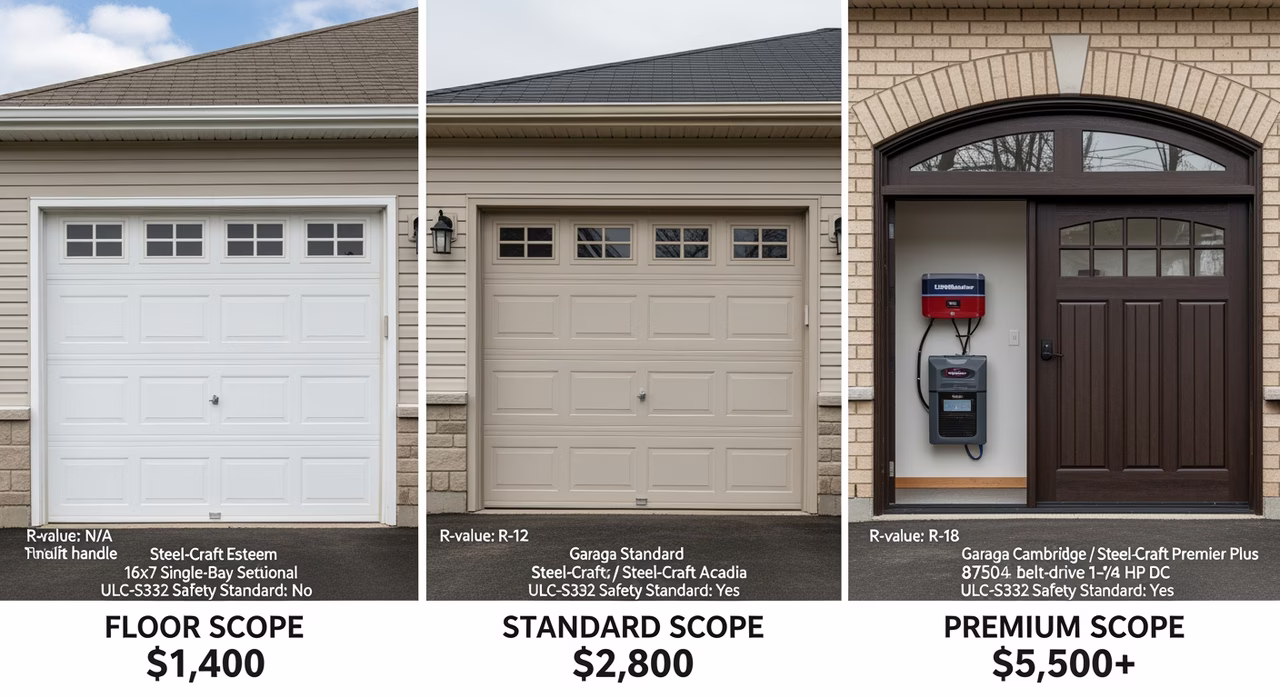

2026 GTA pricing tiers (per door, 16x7 single bay, installed):

• Floor scope ($1,400): Steel-Craft Esteem or Garaga Standard non-insulated 24-gauge steel sectional door, no polyurethane core, basic stamped-panel profile (raised-panel or flush), manual lift (no opener), Stanley galvanized track and 2-inch rollers, standard torsion-spring system. Suitable for detached garages or unheated workshops.
• Standard scope ($2,800): Steel-Craft Acadia or Garaga Standard insulated R-12 24-gauge steel with polyurethane core (1-3/8 inch thickness), thermal-broken panel joints with Q-Lon weatherstrip, modern stamped-panel or short-panel profile, Lift Master 84602 belt-drive 1/2 HP AC garage-door opener with myQ smartphone app integration and Wi-Fi, 2-button remote pair plus HomeLink keypad. R-12 thermal performance meets OBC SB-12 for attached garages.

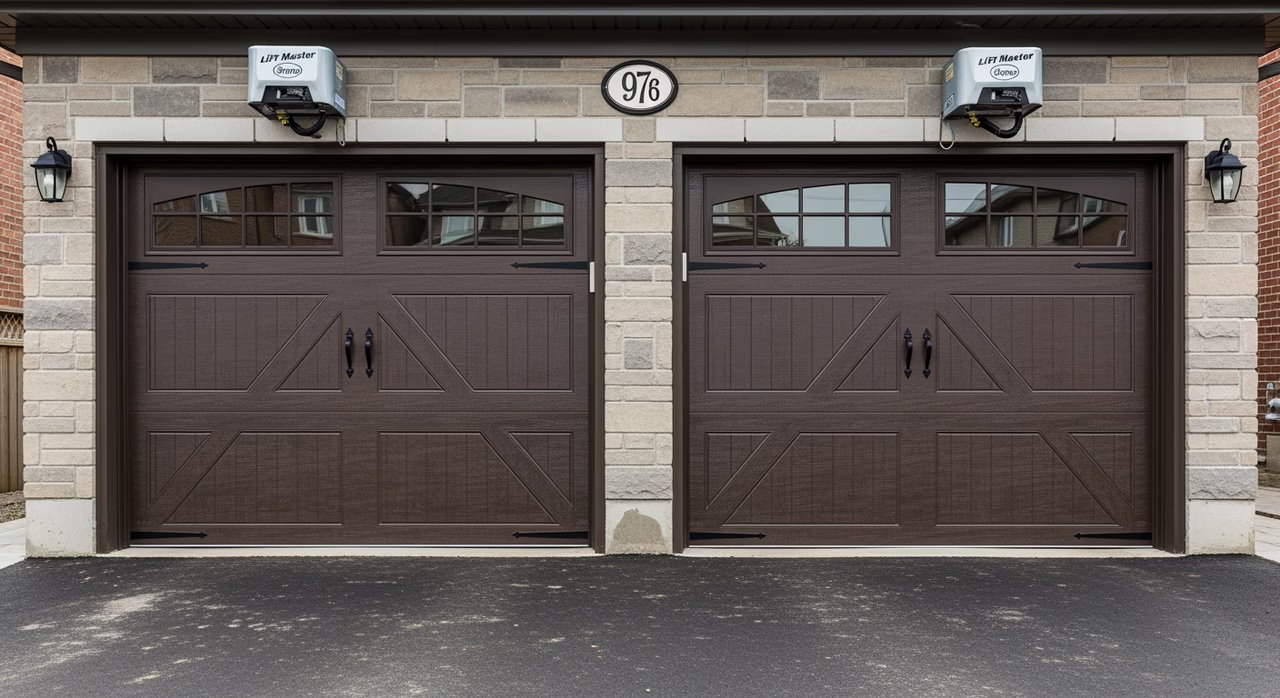

• Premium scope ($5,500+): Garaga Cambridge or Steel-Craft Premier Plus carriage-house insulated R-18 24-gauge steel with polyurethane core (1-3/4 inch thickness), full-view tempered glass top section, decorative handle and hinge hardware, Lift Master 87504 belt-drive 1-1/4 HP DC opener with battery backup, built-in myQ smart-camera, automatic LED lighting, Security+ 2.0 rolling-code, soft-start motor. Double-bay variants run $11,000-$14,000 paired.

OBC and safety compliance — what every Toronto garage-door install must satisfy:

OBC 9.10.9.16 mandates 1-hour fire separation between an attached garage and dwelling living space above or beside. The garage-door slab itself is NOT a fire-separation element. The fire-separation responsibility falls on the wall and ceiling assembly between garage and dwelling: 5/8-inch Type X ULC S101 fire-rated drywall on the dwelling side, sealed at all penetrations. The garage-to-dwelling man-door, however, IS a fire-separation element — it must be a 20-minute or 45-minute fire-rated door slab with self-closing hardware and full perimeter intumescent or rubber seal. Mixing up the garage-door scope vs the man-door scope on permit submission is the single most common Toronto inspection failure on garage renovation.

ULC-S332 is the Canadian standard for garage-door safety: minimum two photo-eye safety sensors mounted 6 inches off the floor at each side of the door track, auto-reverse function tested at less than 25-pound resistance, manual emergency-release pull-cord on the trolley. All Lift Master, Chamberlain, Liftmaster Pro, and Genie residential openers sold in Canada since 1993 carry UL 325 + CSA Z32 compliance. CSA Z32 requires battery backup on residential garage-door openers in Ontario since 2019 to satisfy emergency-egress during power outage — the Lift Master 87504 with built-in battery and the Chamberlain B6713B both ship with code-compliant battery modules.

Torsion-spring sizing is governed by door weight and lift cycle: a 16x7 insulated R-12 door weighing approximately 165 lbs requires a 0.250 wire size x 2 inch ID x 25.5 inch length torsion spring sized for 10,000 cycles (or 0.243 wire for high-cycle 25,000+ commercial-grade). Extension-spring systems on older 1970s-1980s garages are being phased out for safety — torsion-spring systems are mandatory on all new Toronto residential garage-door installs.

Rebate landscape — net price after government offsets:

Toronto Hydro Save on Energy: no rebate currently on garage doors (smart-thermostat, HRV/ERV, LED upgrades only). Ontario Home Renovation Savings (HRS): no rebate currently on garage doors (envelope window/door scope only). Canada Greener Homes Grant: no rebate on garage doors (envelope air-sealing tested via blower-door eligible for $250 instant rebate). Federal Greener Homes Loan: interest-free up to $40,000 envelope improvements including garage envelope air-sealing.

Process — what RenoHouse delivers on every install:

1. In-home measurement and door-size verification. Rough opening width and height to nearest 1/4 inch, header height above opening (minimum 12 inches for standard torsion-spring system, 18 inches for high-lift conversion), side-room measurement (minimum 3-3/4 inches for standard track), ceiling clearance for opener motor head and trolley (minimum 7 feet for standard low-headroom, 9-13 inches additional for opener trolley).
2. Old-door removal. Pre-drop tarps on the garage floor and on any vehicle stored inside; spring-tension release with winding bars (the single most dangerous step — torsion-spring releasing wrong direction can cause severe injury, requires qualified installer); cable-and-drum disconnect; panel removal from top to bottom; track disassembly and removal; opener disconnect if upgrading the opener. Old-door disposal at City of Toronto C&D transfer station or scrap-metal recycler.
3. Track and panel install. New vertical and horizontal tracks lag-bolted to the wood jamb framing alongside the rough opening, level-checked plumb on both sides; bottom panel set into vertical track with bottom-weatherstrip attached; subsequent panels stacked and hinged; top panel set last with top-bracket cable-attachment. Roller install through panel hinges into track at each panel joint.

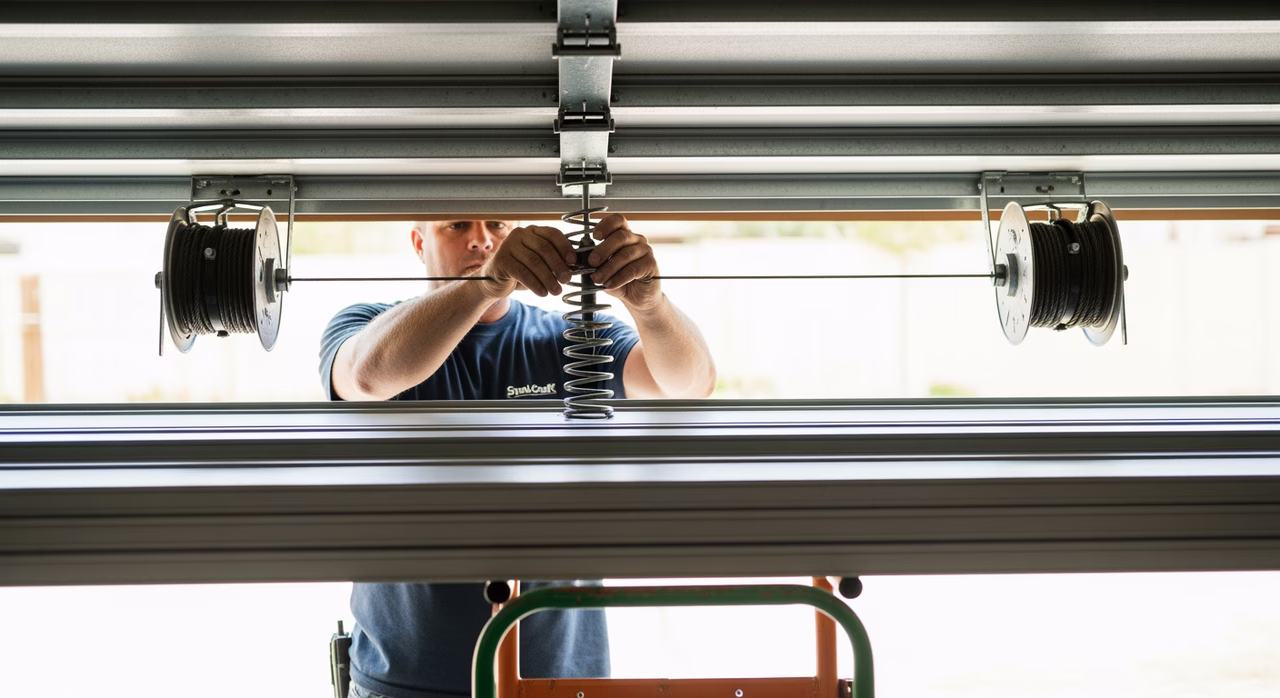

4. Torsion-spring system install. Spring shaft lag-bolted to header above door with center support bracket; springs installed and wound to design torque using winding bars (typically 30-35 quarter-turns on a standard 16x7); cable-and-drum installed at each end; drum lock-set with set-screws. Spring tension is tested by lifting the door manually — at full down or full up the door should hold without drift.
5. Opener install. Motor head lag-bolted to ceiling rafters above the back of the door track; T-rail trolley assembled and mounted to the motor head and to a header-mounted bracket above the door; trolley engaged with the door arm; photo-eye safety sensors mounted on track legs at 6 inches off floor; manual-release pull-cord installed; emergency-key release lock mounted to door exterior.
6. Final testing. Auto-reverse test (pressure test with 1.5-inch block on floor — door must reverse), photo-eye test (interrupt beam during close cycle — door must reverse), force-adjust to manufacturer spec, limit-switch adjustment for full up and full down travel, myQ app pairing and smart-home registration, warranty paperwork handoff.

Brand whitelist for Toronto garage-door scope:

• Garage doors: Garaga (Canadian-made, Quebec plant — premium carriage-house and modern profiles), Steel-Craft (Canadian-made, Ontario plant — Esteem economy through Premier Plus premium), Clopay (US-made, broad mid-range), Wayne Dalton (US-made, mid-range with carriage-house specialty), CHI Overhead Doors (US-made, full premium range), Amarr (US-made, builder-grade through carriage-house).
• Garage-door openers: Lift Master 84602 (1/2 HP belt-drive AC, myQ, mid-range standard), Lift Master 87504 (1-1/4 HP belt-drive DC, myQ smart-camera, battery backup, premium), Chamberlain B510 (1/2 HP chain-drive AC, basic builder-grade), Chamberlain B6713B (1-1/4 HP belt-drive DC, myQ, battery backup), Genie 7155-TKV StealthDrive (1-1/4 HP belt-drive DC, Aladdin Connect smart-app).
• Torsion springs: Industrial Spring (Canadian-made, custom-wound), Service Spring (US-made, 10,000-cycle and 25,000-cycle high-cycle), All-O-Matic.
• Rollers and hinges: Stanley galvanized 2-inch and 3-inch steel rollers (entry-level), Garaga nylon 2-inch quiet roller (mid-range standard), DURA-LIFT premium nylon 13-ball-bearing 3-inch roller (premium quiet).
• Weatherstrip: Q-Lon perimeter weatherstrip, M-D Building Products bottom-seal U-channel rubber, Garage Door Bottom Seal Pro custom-length vinyl.

Common Toronto-specific pain points:

Header-rot on pre-1990 stock from failed gutter and ice-dam water intrusion above the garage door: sister-header repair with new 2x10 SPF or 11-7/8-inch LVL adds $400-$900 to scope. Low-headroom garages (1950s-1960s Toronto detached with garage built into hillside or attached garage with sloped roof) require low-headroom track conversion and double-spring system with low-clearance opener mount: adds $300-$600 to scope. Pre-1980 carriage-house wood doors converting to modern insulated steel: full track + spring + opener system, plus exterior trim re-build to match adjacent house siding or stone, adds $1,500-$3,000 to scope vs like-for-like swap.

WSIB clearance + $2M general liability + $1M property damage insurance required on every Toronto residential garage-door install we submit. RenoHouse serves Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Thornhill, Oakville, Burlington, Etobicoke, Scarborough, North York, and all GTA communities. Same-day emergency spring-replacement service available. Russian-speaking coordination available. Call 289-212-2345 for a free in-home garage-door consultation.

Toronto/GTA neighborhood considerations

• Forest Hill / Rosedale / Lawrence Park (heritage): Heritage carriage-house insulated steel (Garaga GAC, Clopay Coachman) with frosted/leaded-glass top section + decorative hardware (Hahn HG-310 strap-hinge) on pre-war detached. Typical 16x7 $4,800-$9,500 installed + LiftMaster 8500W jackshaft opener $880-$1,400.
• North York / Scarborough / Etobicoke (60s-70s): 1960s 16x7 single + 9x7 narrow garage — Garaga G-5000 insulated steel R-16 + LiftMaster 8550WLB belt-drive opener. Typical $2,400-$3,800 installed.
• Mississauga / Brampton / Vaughan (90s+): 1990s standard 16x7 builder-grade — typical upgrade to Garaga Cambridge CL R-12 or Clopay Premium Series LU R-12 + LiftMaster 84505R Wi-Fi opener. $2,800-$4,200 installed.
• Caledon / King City / Aurora (rural well): Rural detached + heated workshop — R-18 to R-21 polyurethane-injected (Garaga G-5500 Acadia + Clopay 9202) + LiftMaster 8587 with heater-rated belt. $3,800-$6,500 installed.
• Downtown condos: Townhome single garage 8x7 or 9x7 — Garaga Cambridge or Richards-Wilcox Bayhead steel R-12 + Genie 3055 chain-drive. $2,400-$3,800. Common-element approval often required.

Permit + license: Toronto Building Permit at structural rough-opening or header change. UL 325 garage-door opener safety standard + CSA C22.2 No. 247. ESA Notification + Form 7 on opener install. No trade license but $2M general liability + working-at-heights cert.
