Electrical Panel

H1: Electrical Panel Upgrade, Replacement & Service Increase — Toronto GTA

Hero subhead: ECRA/ESA-registered contractor. Master Electrician 309A on site. FPE Stab-Lok replacements, 100A-to-200A upgrades, EV-ready load capacity, ESA permit + Form 1 handled. Toronto Hydro coordination included.

Quick Answer — What a Panel Upgrade Costs in 2026

Typical clean 100A → 200A upgrade in the GTA: $1,800–$3,200 all-in, finished in one day, ESA inspection passed within 5 business days. A 60A or split-bus panel replacement on a 1950s bungalow with the existing mast in good shape lands at the low end. A 100A → 200A with a new service mast, weather head, and Toronto Hydro overhead-service appointment lands at $4,500–$7,500 and runs 6–12 weeks lead time because Toronto Hydro controls the disconnect window.

If you have a Federal Pacific Electric Stab-Lok, Zinsco, or GTE Sylvania panel, replacement is not optional and the timeline is "this month, not next." These three panel brands are known fire hazards that insurance carriers refuse to renew against once they've identified them in a home inspection.

2026 GTA Cost Breakdown

What's included in a RenoHouse panel quote (no surprise line items):

• ESA Notification of Work (NOW) permit: $150–$385 sliding scale
• ESA inspection fee
• Toronto Hydro temp disconnect/reconnect coordination: $678 flat (2026 rate)
• Master Electrician 309A on-site supervision (not apprentice-only crew)
• New main breaker, ground/neutral bus, all single-pole/double-pole branch breakers labelled
• New grounding electrode conductor + bonding to cold-water main and ground rods (OESC 10-700)
• Photo-documented load calculation per OESC 8-200
• Form 1 issued by ESA at inspection close-out (your insurance file's proof-of-work)

Toronto Hydro coordination note: A panel upgrade that requires the meter base or service entrance to be replaced needs a Toronto Hydro Connect Request, a scheduled disconnect window (4–12 weeks queue depending on season), and a reconnection inspection. We file the Connect Request the day we sign the quote so the clock starts immediately. Summer is the longest queue season; winter overhead service work has a separate weather restriction.

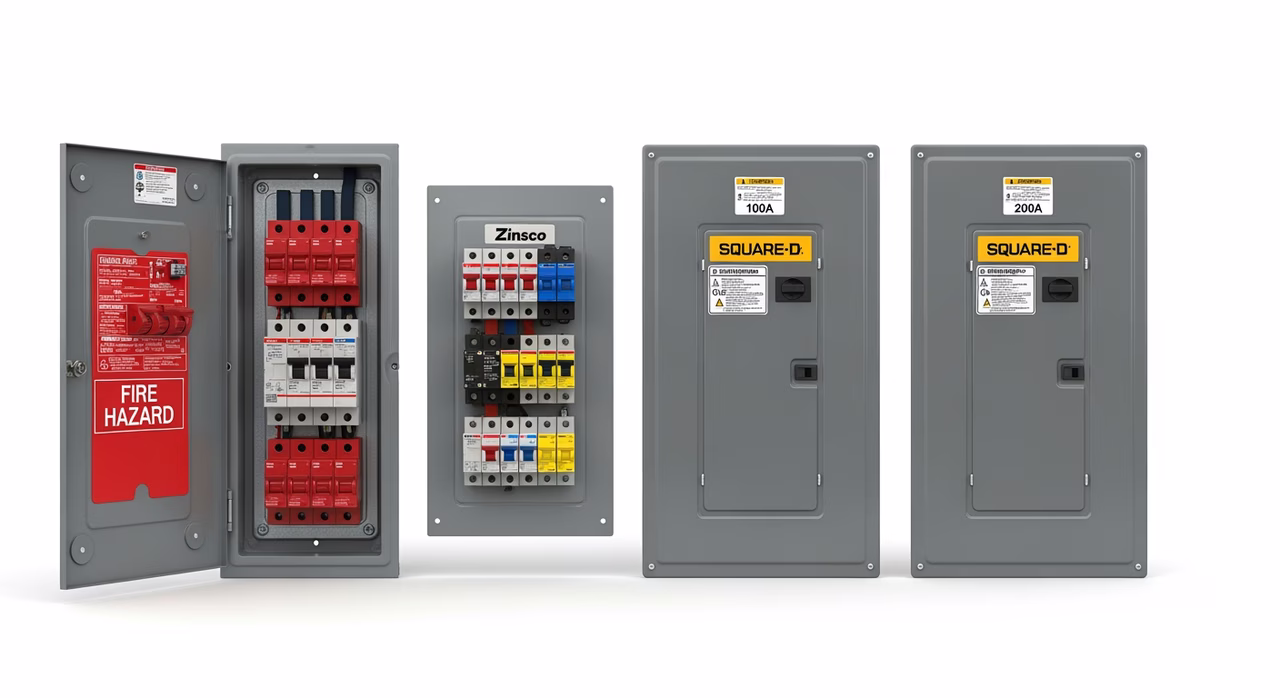

Federal Pacific Stab-Lok, Zinsco, GTE Sylvania — The Three Panels That Must Go

These three panel families share a single critical failure mode: breakers that don't reliably trip on overload or short circuit. A breaker that fails to trip lets a fault keep drawing current through wiring it shouldn't, and the wiring overheats. That's the fire-risk pathway.

Federal Pacific Stab-Lok (FPE)

Visual ID: Red toggle switches on breakers, "Federal Pacific Electric" branding on the dead front cover, "Stab-Lok" stamped on the breaker body. Installed widely 1950–1985 across North America, very common in Toronto homes built 1960–1980.

Why it's a problem: Independent test data (CPSC 1980s investigations + 2010s litigation discovery) shows Stab-Lok breakers fail to trip at rates of 25%–50% under overload conditions and even higher under short-circuit conditions. The failure mechanism is mechanical wear in the toggle linkage plus thermal degradation of the bimetal trip element.

Insurance posture (Ontario, 2026): Aviva, Intact, TD Insurance, Wawanesa, and Co-operators have all listed FPE as a non-renewal trigger when identified in a home inspection. Some carriers grant a 90-day grace period to replace. Quotes from these carriers explicitly reference Stab-Lok by name.

Replacement: Full panel replacement only. Stab-Lok breakers are still available in the aftermarket but ESA inspectors won't pass a same-panel breaker swap on FPE — the issue is the panel chassis, not just the breakers.

Zinsco / GTE Sylvania (the Canadian-market cousin)

Visual ID: Brightly coloured breakers (red, blue, green for different amperages), "Zinsco" or "GTE Sylvania" branding. Installed 1950s–1970s.

Why it's a problem: Aluminum bus bars corrode and arc against the breaker contacts. Same end result as FPE — breakers fail to trip + bus bar damage creates fire risk inside the panel itself.

Replacement: Full panel replacement, urgency comparable to FPE.

What to do if you have one of these panels

Don't panic, but don't delay either. Photograph the panel (with the cover on), call us at 289-212-2345, and we'll schedule a same-week assessment. Plan replacement within 30–60 days. If your home insurance was issued before the panel was flagged, we'll provide ESA Form 1 documentation directly to your broker so the policy stays in force on renewal.

Process — What Panel Day Actually Looks Like

A standard 100A → 200A upgrade with existing service mast (no Toronto Hydro overhead work):

Day 0 — Quote and scheduling. On-site load calculation per OESC 8-200 (electric range, dryer, central AC, EV charger plans, heat pump plans, baseboard heat loads). ESA permit filed online. Toronto Hydro Connect Request submitted if mast/meter work is in scope. Lead time confirmed.

Day 1 morning — Power off, demolition. Customer notified the night before; coffee made before power-off. We pull the meter (with Toronto Hydro authorization where required), kill power, photograph and tag every existing branch circuit, demo the old panel, and inspect the service entrance conductors for damage or undersized gauge.

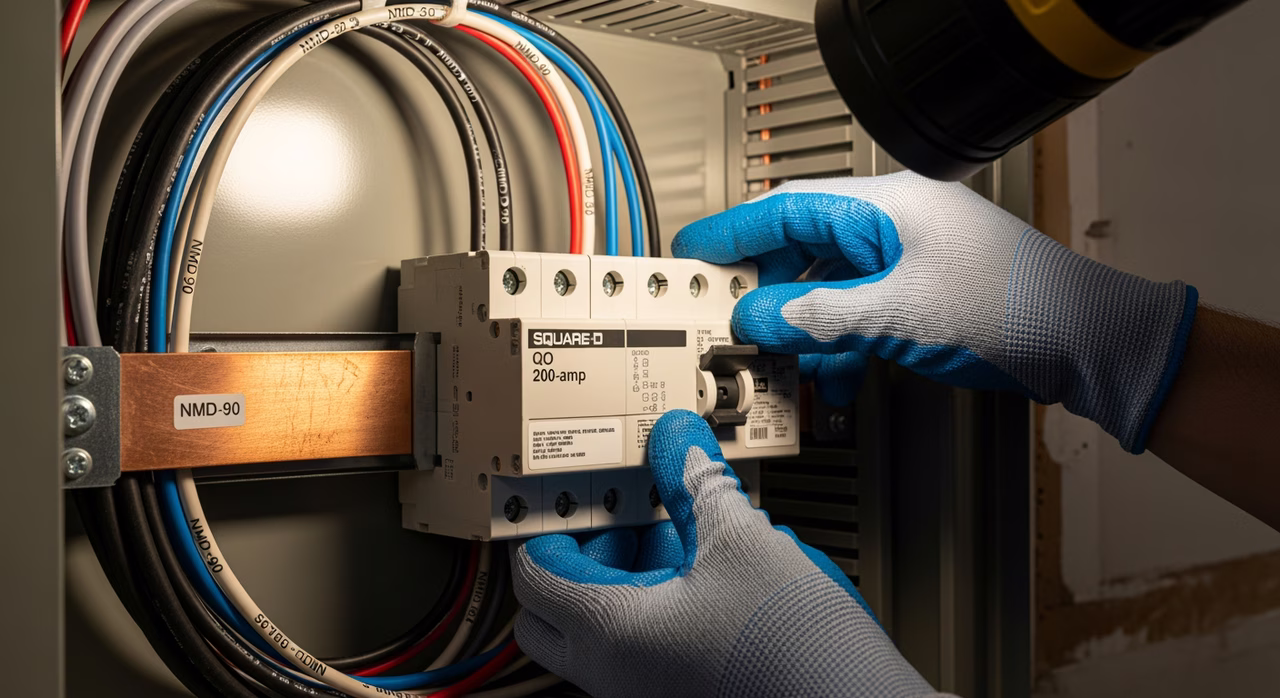

Day 1 midday — New panel mount and wiring. New panel chassis installed (Square D QO 200A 40-circuit or Eaton CH 200A 40-circuit are our defaults — see brand section below). New 200A main breaker. New grounding electrode conductor (#6 copper bonded to the cold-water main within 1.5 m of entry per OESC 10-708, plus 2× 10ft ground rods spaced 1.8 m apart per OESC 10-700). New neutral bus, isolated ground bus. Each branch circuit landed on its labelled breaker with photo-verified torque on every lug per panel manufacturer spec (this single step prevents 90% of post-install hot-spot complaints).

Day 1 afternoon — Inspection prep and power-up. Panel dead-front installed. Final visual inspection. Power restored (or meter re-installed). Every circuit individually tested at the load. Customer walk-through — labels read, main breaker location demonstrated, AFCI/GFCI test buttons demonstrated, breaker-replacement procedure explained.

Day 1 evening — ESA notification of work completion. We file the completion electronically with ESA so the inspector can schedule.

Day 2–5 — ESA inspector visit. ESA inspector visits, verifies the install meets OESC 27th Edition. Form 1 (Certificate of Inspection) issued. We email the Form 1 PDF to the homeowner and, on request, directly to the insurance broker.

Brand Comparison — What Goes on Your Wall for the Next 40 Years

A residential electrical panel is a 40-year decision. Switching brands mid-life is expensive (different breaker bus designs are not interchangeable), so the brand chosen on install day determines breaker availability and pricing for the panel's whole service life.

Square D QO is the most widely stocked brand at Canadian electrical wholesalers (Sonepar, Wesco, Wolseley have it in every branch). QO plug-on neutral AFCI/GFCI breakers are the most common breaker family in the Toronto resale market — when someone needs to add an EV charger in 2032, the breaker will still be in stock at every supply house. This matters because some homeowners discover too late that their original-install panel was a discontinued line where AFCI breakers now cost $180 each instead of $80.

Eaton CH is a contractor's favourite — slightly tighter wiring channels, very clean lug layout, excellent quality on the BR (basic) and CH (premium) lines. AFCI/GFCI breaker pricing matches Square D within a few dollars.

Siemens is preferred where 30-space density is acceptable and the customer prefers Siemens for other reasons (often a builder spec). AFCI breakers are slightly pricier.

Avoid: Older Federal Pacific (covered above), Zinsco (covered above), or any used/refurbished panel chassis. Always specify a new factory-fresh panel on a residential service upgrade — the chassis is the cheapest part of the job.

Load Calculation — Why "100A is Fine, Right?" Often Isn't

OESC 8-200 governs residential service load calculation. The formula sums up actual or assumed loads from every major appliance and applies demand factors. A 2026 GTA home with the following loads is already past 100A capacity:

• 4500 sq ft of heat-pump-conditioned space (or baseboard heat) — 75% of first 10 kW + 25% of remainder
• Electric range — 6 kW first appliance
• Electric dryer — 1 kW
• Central AC — calculated at nameplate
• Electric water heater (if not gas) — 4.5 kW
• Level 2 EV charger 40A continuous — 7.7 kW (continuous = at 100%)
• General lighting/receptacle — 1 W/sq ft × area

A typical 2200 sq ft Toronto home with gas heat, electric range, electric dryer, central AC, and one EV charger plan calculates to about 110–125A demand load. That's why "I have a 100A panel and I'm fine" gets clipped the day the EV charger arrives — the panel might have enough breaker spaces, but the service entrance is undersized.

Decision tree:

• 60A or 100A panel, no EV plans, gas heat, gas appliances: 100A is OK for the medium term. Plan upgrade at next major renovation.
• 100A panel + EV charger plan: EVEMS (energy management system) like the DCC-9 can keep you at 100A by load-shedding the EV when the rest of the panel maxes out — see EV charger panel bundle. Otherwise, upgrade.
• 100A panel + heat pump conversion plan: Upgrade. Heat pumps draw 30–60A continuous on cold-snap days.
• 100A panel + EV + heat pump + electric range: Upgrade to 200A, no question. Some homes need 320A or 400A service.
• 200A panel, modern home: Sufficient for nearly every scenario short of dual EV chargers + electric range + heat pump + workshop. We document load calc and confirm before quoting downsize work.

Sub-Panels — When and Why

A sub-panel is a secondary panel fed from the main panel. Common use cases:

Garage workshop sub-panel: 60A or 100A sub-panel in a detached or attached garage, fed by 4-conductor cable from the main panel. Allows multiple 20A receptacles for tools, a welder circuit, a Level 2 EV charger, and shop lighting on a single subsystem. $1,200–$2,400 installed.

Basement apartment / ARU (Accessory Residential Unit): Toronto's ARU bylaw permits secondary suites with their own metering. A sub-panel in the basement unit (sometimes with its own meter for landlord/tenant billing) cleanly separates the tenant's circuits. ESA permit required. $1,800–$3,200.

Pool / hot tub: Dedicated 50A or 60A sub-panel near the pool equipment, GFCI-protected, bonded to the pool's equipotential grounding grid per OESC Section 68. $1,600–$2,800.

Solar/battery integration: Critical loads panel for whole-home battery backup. The panel separates "must-stay-on" circuits (fridge, sump pump, internet, a few outlets) from non-critical loads so the battery doesn't waste capacity on the dryer. $2,400–$4,800 depending on battery integration.

GTA Neighbourhood Notes — What We See

Cabbagetown, Riverdale, Annex, Leaside (pre-1940 housing stock): Overhead service through original service mast, often 60A two-wire service still in place. Mast frequently undersized for modern 200A upgrade — full service entrance replacement (mast, weather head, riser, meter base) is standard scope. Toronto Hydro queue 6–12 weeks. Original knob-and-tube wiring still present in attics — verify before quoting (see knob-and-tube page).

Etobicoke, East York, North York (1950s–1970s bungalows): Service entrances generally accessible from side or rear. Many homes on 100A originally; 200A upgrade with mast replacement runs $3,800–$5,500. Federal Pioneer panels common from this era — usually adequate as-is, but Federal Pacific Stab-Lok appears frequently from 1965–1980 builds.

Mississauga, Brampton, Vaughan (1980s–2000s subdivisions): Underground service is the norm. Service entrance comes up through a basement floor or wall. 200A is the typical original spec. Panel upgrades here are usually breaker-density driven (homeowner needs more breaker slots, not more amperage) — sub-panel additions are common.

Markham, Aurora, Newmarket (2000s+ new builds): Modern Square D QO or Eaton CH panels in place; 200A standard. Most panel work here is sub-panel additions, garage feeds for EV chargers, or breaker upgrades for new loads.

Scarborough, Pickering, Ajax (1960s–1980s tract): Mix. Original 100A common; FPE prevalence high in 1965–1980 sub-divisions. Replacement priority and insurance pressure highest in this zone of the GTA.

Oakville, Burlington (high-end housing stock): Often 200A originals from 1990s+ builds. Upgrade scope here is typically 200A → 400A residential split bus for large homes with multiple EV chargers + pool + workshop.

Toronto condo highrise unit panels: Different regime entirely. Unit panel is fed from the building's electrical room; you cannot upgrade your unit panel's amperage without building management approval and a building-engineer load study. We coordinate with property management for unit-panel work that stays within the existing amperage allocation.

Rebates and Financing

Save on Energy Home Renovation Savings (HRS, 2026): Panel upgrades paired with a heat pump installation qualify for rebates up to $1,500 on the panel component. Heat pump must be installed within the same project window.

Canada Greener Homes Loan: Up to $40,000 interest-free (10-year amortization) for whole-home electrification packages — panel upgrade + heat pump + EV charger as a stacked project qualifies. Application before work starts. Funds disbursed against invoices.

Manufacturer rebates: Square D and Eaton occasionally run installer-channel rebates on full panel replacements paired with AFCI-protected branch breakers. We pass these through directly.

Insurance discount: Some carriers (Co-operators, Wawanesa) reduce home insurance premiums 5–10% on completion of a panel upgrade out of FPE/Zinsco. ESA Form 1 is the document your broker will ask for.

Insurance Angle — What Your Broker Will Ask For

When you replace an FPE Stab-Lok, Zinsco, or other flagged panel, your insurance broker needs three things:

1. ESA Form 1 (Certificate of Inspection) showing the new panel was installed under ECRA/ESA permit and inspected by ESA. We email this directly to the broker on request.
2. Photos of the new panel with the dead-front cover removed (showing the brand and main breaker) and with the cover on (showing the panel directory).
3. Invoice showing the contractor's ECRA/ESA registration number and the Master Electrician 309A licence holder of record.

These three documents close out the file. Most carriers reinstate full coverage or remove the renewal flag within 7–14 business days of receipt. We provide all three on every panel job by default.

When to Call a Master Electrician — Never DIY

Panel work in Ontario is never DIY, regardless of homeowner skill level. The legal and practical reasons:

• Ontario's Electrical Safety Act prohibits unlicensed persons from performing service equipment work (everything from the meter base inward).
• Insurance policies void coverage on damage traced to unlicensed electrical work.
• ESA inspections fail any work not performed under a permit pulled by a licensed contractor.
• Toronto Hydro will not energize a service that hasn't passed ESA inspection.
• Working near a live 200A service is a fatal-error environment — the arc-flash energy at a residential service exceeds the lethal threshold even at modest fault currents.

Call us immediately if you see:

• Burning smell from the panel (de-energize main breaker if safe, evacuate, call us)
• Hot panel cover (above warm-to-the-touch — call us)
• Buzzing, sizzling, or crackling sounds from the panel
• Breakers that won't reset after tripping
• Breakers that trip repeatedly on the same circuit
• Brown or black discoloration on breaker faces or panel interior
• Water visible inside or near the panel
• Any FPE Stab-Lok, Zinsco, or GTE Sylvania panel — schedule replacement assessment

Frequently Asked Questions

Q1. How do I know if I have a Federal Pacific Stab-Lok panel? Look at the breakers. FPE Stab-Lok breakers have red toggle switches and "Stab-Lok" embossed on the breaker body. The dead-front cover usually says "Federal Pacific Electric." Photograph the panel and send it to us; we'll confirm within minutes.

Q2. Can I add an EV charger without upgrading my 100A panel? Sometimes — an Electric Vehicle Energy Management System (EVEMS) like the DCC-9-60 monitors total panel load and throttles the EV charger when the rest of the panel approaches the service limit. This is OESC 86-300 compliant and lets many 100A homes accept Level 2 charging. See our EV-charger-panel-bundle page for the decision tree.

Q3. Why is my panel upgrade quote so much higher than the neighbour's was? The variables are mast/service entrance condition, Toronto Hydro queue (overhead service work has long waits in peak season), AFCI/GFCI breaker count, and any required wiring corrections found at demo. A clean 100A → 200A in a Mississauga 1990s home is genuinely $1,800–$2,800; a 60A → 200A in a 1925 Cabbagetown semi with new service mast and a chimney inspection adds $2,000–$3,500 in legitimate scope.

Q4. Square D vs Eaton — which should I pick? For most GTA homes either is excellent. Square D QO has slightly broader distribution (every supplier stocks QO breakers); Eaton CH has slightly tighter wiring channels and is preferred by some installers. AFCI/GFCI breaker pricing is within $10 between the two brands. We default to Square D QO unless the customer has a preference.

Q5. What's a sub-panel and do I need one? A sub-panel is a secondary breaker box fed from the main panel. You need one when you're adding a major load (garage workshop, basement apartment, pool/hot tub) far from the main panel or when you've run out of breaker slots in the main panel. Sub-panel installs run $1,200–$2,400.

Q6. How long does ESA inspection take after install? We file completion the same day; ESA inspector visits within 5 business days typically (faster for urgent insurance-driven jobs). The Form 1 PDF lands in your inbox within 24 hours of the inspector's visit.

Q7. Will the power be out all day? For an existing-mast 100A → 200A upgrade, power is off 4–7 hours typically. We start at 8 AM, power back on by 2–3 PM. For service mast replacements with Toronto Hydro coordination, the disconnect window can be longer (sometimes overnight) — we communicate the exact schedule when Toronto Hydro confirms.

Q8. Why is AFCI breaker more expensive than a regular breaker? AFCI (Arc Fault Circuit Interrupter) breakers contain electronics that detect arc-fault signatures (intermittent arcing in damaged wiring or loose connections) and trip the circuit before the arc starts a fire. They're required by OESC 26-722 on bedroom circuits in new construction and are excellent retrofit insurance everywhere. Standard breaker $15, AFCI breaker $65–$95, dual-function (AFCI + GFCI) $90–$140.

Q9. Can I keep my old breakers when you replace the panel? No — old breakers go with the old panel. Different panel brands have different breaker bus designs, and reusing a breaker that's been thermally cycled for 30+ years on a new chassis defeats the safety upgrade. New chassis = new breakers throughout.

Q10. Do I need to be home all day during the install? We need someone home at the start (to walk through final scope and authorize power-off) and at the end (walk-through and breaker labelling confirmation). Mid-day we work independently. For empty-home installs we coordinate access with the homeowner's schedule.

Q11. What happens to my circuit labels? We photo-document every existing breaker label, re-create the schedule on the new panel, and verify every circuit at the load before sign-off. The new panel directory is typed (not handwritten) and laminated. Customers consistently rate this as the most-satisfying part of the upgrade — finally knowing what every breaker actually controls.

Q12. What's the workmanship warranty? Two-year RenoHouse workmanship warranty on the install. Manufacturer warranty on the panel itself: limited lifetime (Square D QO, Eaton CH), 10-year (Siemens, Federal Pioneer). AFCI/GFCI breakers carry the panel manufacturer's warranty.

Need a Licensed Electrician in the GTA?

Same-week assessment. ECRA/ESA registered contractor, Master Electrician 309A on every job, ESA Form 1 delivered on completion.

Call 289-212-2345 or message through the site.
