# Walkout Basement Creation in Toronto: The 2026 Engineering Deep-Dive

A walkout basement creation project converts an existing below-grade level — typically poured-concrete or block foundation with 1.95 m to 2.4 m ceiling height — into a true ground-access dwelling by excavating the rear or side yard, installing engineered retaining walls and exterior stairs, cutting a new full-height door and window assembly through the foundation, and grading the yard for positive drainage. When combined with a self-contained ARU fit-out (kitchen, bathroom, fire-separation), the result is a legal, rentable, naturally-lit second dwelling unit governed by Toronto By-law 569-2013 (as amended) and the provincial framework established by Bill 23, the More Homes Built Faster Act, 2022.

Walkout creation is one of the most engineering-intensive ADU pathways. It almost always requires a Professional Engineer of Ontario (PEO) P.Eng letter for the retaining wall and structural opening, careful grading and stormwater management, and close coordination with Toronto's Building Division on both the structural and the Right-of-Way / grading sides. RenoHouse runs walkout projects end-to-end, including the structural engineer, grading engineer, and waterproofing specialist subtrades.

What a Walkout Is — and What It Is Not

A walkout basement has at least one full-height door at grade level on at least one side of the building, allowing direct egress without stairs from the basement floor to the yard. The basement floor is typically 1.5 to 2.4 m below the front grade, but the rear or side yard slopes down (naturally or via excavation) to match the basement floor elevation.

A lookout basement is a hybrid: the basement floor is partially below grade but has full-height windows at the rear, with a small set of exterior stairs leading up to grade. Lookouts are easier to engineer (less excavation, smaller retaining wall) but the suite cannot use the lookout opening as primary egress unless the stair geometry meets OBC 9.9 — which it usually does not without modification.

A second-egress basement apartment (different RenoHouse service) keeps the existing below-grade level but adds a code-compliant exterior stairway and door — this is the right path when the rear yard slope is too modest to support a true walkout. See our [Second Egress for Basement Apartment](/services/multi-unit-aru-conversions/second-egress-basement-apartment) page.

The 2026 Toronto Regulatory Landscape

Bill 23 and By-law 569-2013

Bill 23 requires Ontario municipalities to permit up to three units per lot. Toronto's By-law 569-2013 was amended in 2024-2025 to allow up to four units per lot in combination with garden suites. A walkout basement apartment counts as the second ARU on most lots and is as-of-right when zoning performance standards are met.

Building Permit and Engineering Stamps

A walkout requires a Building Permit because of the structural alteration to the foundation wall and the new exterior assembly. The permit package must include:

• P.Eng-stamped structural drawings for the new door and window openings (lintel sizing, bearing details).
• P.Eng-stamped retaining wall design for the new exterior stair pit and any cut into the yard above 1.2 m. Per Ontario Building Code 9.20.16, retaining walls over 1.0 m exposed face require engineered design.
• Grading and drainage plan showing positive slope away from the foundation (minimum 2% over the first 1.8 m per OBC 9.14.6) and stormwater conveyance.
• Waterproofing detail at the new opening per OBC 9.13 (damp-proofing and dewatering).
• OBC 9.9 egress drawings showing exterior stair geometry (rise 200 mm max, run 230 mm min, headroom 2.05 m min).
• OBC 9.10.4 fire separation between the suite and the main dwelling (45-minute rating).
• OBC 9.36 energy compliance for the new envelope.

Committee of Adjustment Triggers

Walkout creation typically does not trigger a Committee of Adjustment hearing because no new building is being constructed and the exterior stair and retaining wall are ancillary works within yard setbacks. COA is triggered when:

• The exterior stair encroaches into a required setback by more than 0.6 m.
• A second-storey addition is being built simultaneously with the walkout.
• The lot is in a Heritage Conservation District (Heritage Permit Council exception, not strict COA).

Right-of-Way and Boulevard Issues

If the walkout door faces the front street and the new exterior stair would land in the City road allowance, a separate Right-of-Way permit from Toronto Transportation Services is required. Most walkouts are oriented to the rear or side yard, avoiding ROW issues.

Site Plan Control

Walkout basement apartments under 600 sq ft of additional GFA are exempt from Site Plan Control. Larger conversions or those combined with rear additions may trigger Site Plan and add 8 to 14 weeks.

2026 GTA Pricing Tiers

Floor Tier — $145,000 to $195,000

Applies when the rear yard already slopes more than 1.5 m below the basement slab elevation and the existing foundation wall is sound poured concrete. Includes:

• Excavation and engineered retaining wall, 1.2 to 1.8 m exposed face, segmental block or poured concrete with P.Eng design.
• New 36" exterior door + sidelite cut into foundation, hardened steel lintel.
• Exterior staircase with code-compliant rise/run, frost-protected concrete pad.
• 1 new compliant egress window in the bedroom (typically rear) per OBC 9.9.10.
• Basement waterproofing at new opening, dimple board + perimeter drain tie-in to existing weeper.
• 1 bathroom rough-in or upgrade, kitchenette, 400 to 600 sq ft of finished suite area.
• All permits, engineering stamps, and inspections.

Standard Tier — $195,000 to $245,000

Applies when partial excavation of the rear yard is needed to achieve walkout grade. Adds to Floor tier:

• Larger retaining wall (1.8 to 2.4 m exposed face), engineered drainage behind wall.
• Underpinning of one or more foundation sections to achieve 2.1 m suite ceiling height per OBC 9.5.3 (where original basement is shorter).
• Full 1BR suite, 600 to 800 sq ft.
• HRV ventilation per OBC 9.32, mini-split heat pump for primary heat.
• Vibration monitoring of adjacent properties during excavation.

Premium Tier — $245,000 to $295,000

Applies to full perimeter underpinning combined with walkout, often producing a 2BR suite with 2.4 to 2.7 m ceilings. Adds:

• Full underpinning (separate scope, see [Basement Underpinning](/services/home-renovation/basement-underpinning)).
• 2BR + 1 bathroom + ensuite, 900 to 1,100 sq ft.
• Architect-led design, premium finishes, custom kitchen.
• Larger retaining wall system with engineered drainage and landscape integration.
• Heritage Permit (where applicable) and Site Plan Control management.

Realistic Project Timeline

Common Permit-Rejection Gotchas (Walkout Specific)

1. Grading does not show positive 2% slope away from foundation per OBC 9.14.6. Plans-examiners reject grading plans that show ponding within 1.8 m of the foundation. Solution: dedicated grading engineer, swale design.
2. Retaining wall design exceeds 1.0 m exposed without P.Eng stamp per OBC 9.20.16. Some builders submit standard segmental-block details; plans-examiner kicks them back. Solution: P.Eng letter from project start.
3. Exterior stair rise/run non-compliant per OBC 9.8.4 (residential interior) or OBC 9.9 (egress). Common error: 8" rise (203 mm — okay) paired with 9" run (230 mm — okay) but no 38 mm projection of nosing. Solution: explicit stair detail in drawings.
4. Egress window in suite bedroom does not meet 0.35 m² openable area per OBC 9.9.10. Older basement windows are universally non-compliant. Solution: spec new egress window with proper window well (1.05 m² minimum well area, 760 mm projection).
5. No vibration monitoring plan for adjacent properties. Toronto plans-examiners increasingly require a vibration monitoring protocol when excavating within 3 m of a neighbour foundation. Solution: include monitoring spec in drawings; budget $2,500 to $5,500 for the monitor.
6. Stormwater discharge to public ROW without ROW permit. If the walkout stair drain ties into the curb gutter, a Transportation Services permit is required. Solution: tie into the home's existing weeper and storm lateral.
7. Insufficient clearance to gas meter or hydro service. OBC and ESA require minimum clearances from new openings to utility equipment. Solution: utility relocation budget at design phase.

Drainage and Waterproofing Detail

The single largest failure mode of walkout basements is water infiltration at the new opening. RenoHouse's walkout spec includes:

• Exterior dimple board (Delta-MS or equivalent) from footing to grade, all reworked foundation faces.
• Perimeter drain tile at footing, gravity-fed or sump-pumped to storm.

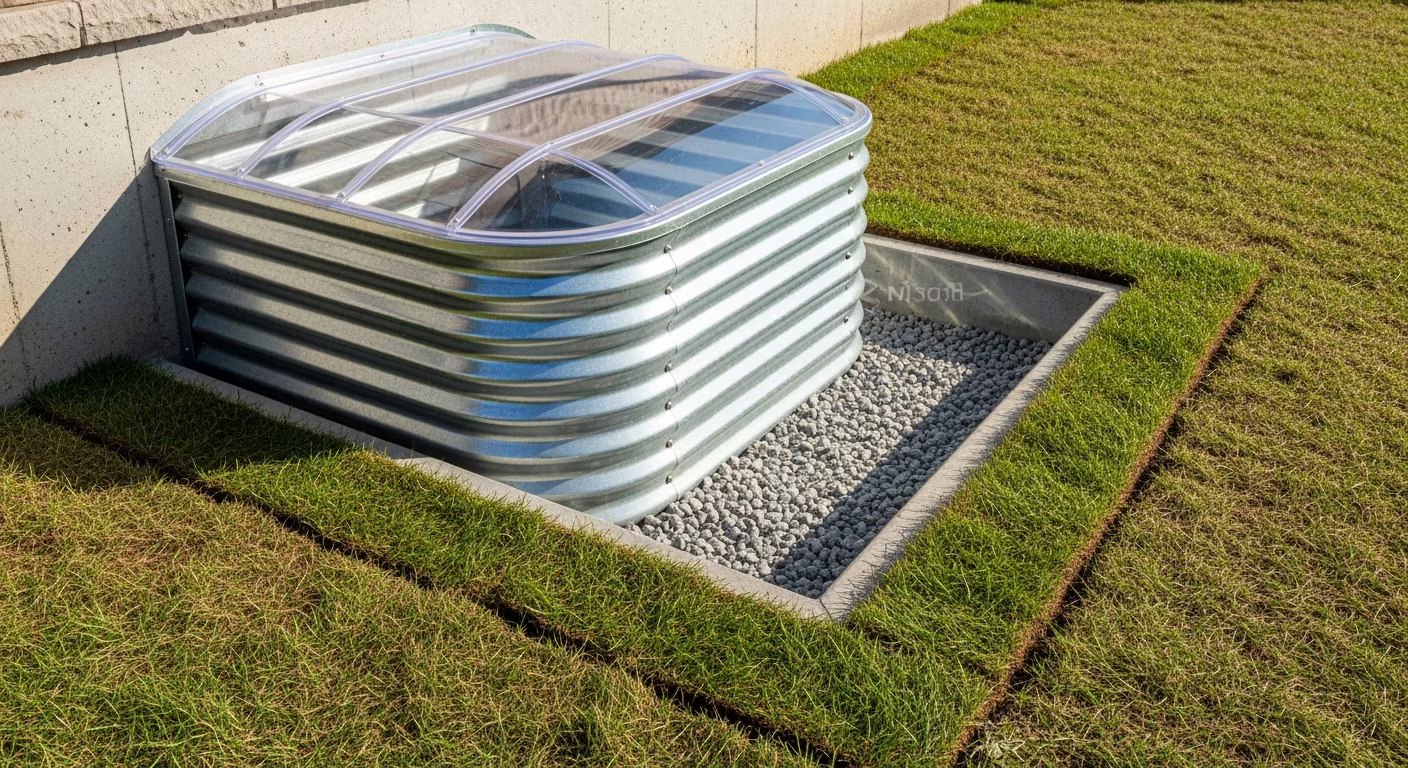

• Window well with engineered drain to perimeter drain.
• Sloped landing pad at the door (minimum 1:50 slope away from threshold).
• Integrated curtain drain in the new stair pit, separate from the foundation drain.
• Self-adhered membrane at the lintel and door header to prevent water track-back.

This assembly typically adds $9,000 to $16,000 to the project cost — non-negotiable for a 25-year envelope life.

Ontario Fire Code and Insurance

A walkout basement apartment is a Group C residential occupancy with the same OBC 9.10.4 fire-separation, interconnected smoke alarm, and CO alarm requirements as any basement suite. Key items:

• 45-minute fire separation between the suite and the rest of the dwelling, including the ceiling assembly under the main floor.
• Interconnected smoke alarms between suite and main house per Ontario Fire Code Part 9.
• Fire-stopping at the new foundation penetration (door + sidelite assembly) per ULC S115.
• Self-closing door between any shared common area and the suite.
• ULC S102 flame-spread rating of 150 or less on all corridor finishes.

Insurance disclosure is mandatory once occupancy is granted; failure to disclose voids coverage in a claim.

Five-Submarket Considerations

Toronto Old City

Narrow lots (often 18 to 25 ft frontage) restrict where the walkout stair can land. Backyards in Leslieville, Riverdale, Roncesvalles, and the Junction often have natural rear slope from old creek beds, making walkouts feasible without massive excavation. Rents $2,400 to $2,800/month for a 1BR walkout suite.

North York / Scarborough / Etobicoke

Wider lots and tabletop topography mean walkouts often require significant excavation to create the rear-yard drop. Standard tier most common. Rents $1,900 to $2,300/month.

Inner Suburbs (East York, York)

1940s-50s housing stock with shallow basements (often 1.85 m ceiling) typically requires underpinning to achieve OBC 9.5.3 ceiling minimum before walkout creation is worthwhile. Combined walkout + underpinning is the common scope here, pushing into Premium tier.

905 (Mississauga, Brampton, Vaughan, Markham)

Newer housing stock (1980s onward) often has near-walkout grading already — many homes were graded with deliberate rear drop. Mississauga By-law 0270-2024 explicitly permits second-suite walkouts as-of-right. Costs run 10 to 15% below Toronto Old City. Rents $1,700 to $2,000/month for 1BR.

Heritage Districts

Walkouts in Rosedale, Forest Hill, Cabbagetown, and the Annex permitted but the exterior stair and retaining wall need Heritage Permit. Heritage Preservation Services typically requires stone facing, traditional railings, and discreet stair placement. Add 10 to 14 weeks and $12,000 to $25,000 to budget.

ROI Math for the Owner

Using Standard Tier walkout 1BR at $215,000 all-in:

Property value uplift from a legal walkout basement apartment with above-grade entry typically appraises at $150,000 to $220,000 versus a non-walkout legal basement apartment ($100,000 to $150,000 uplift). The walkout's appeal — natural light, private entrance, ground-level access — produces a 30 to 40% rent premium and significantly faster lease-up.

Compliance Checklist — Fully Legal Toronto Walkout Basement Apartment

1. Building Permit issued by Toronto Building Division with final occupancy.
2. P.Eng-stamped structural and retaining wall drawings on file.
3. ESA electrical inspection certificate for new subpanel.
4. Plumbing rough-in and final inspection signed off (306A plumber).
5. OBC 9.36 energy compliance for new envelope.
6. OBC 9.10.4 fire separation between suite and main house.
7. OBC 9.9 egress: walkout door + compliant egress window in every bedroom.
8. OBC 9.14.6 grading compliance with positive slope away from foundation.
9. Interconnected smoke alarms and CO alarm.
10. HRV ventilation, kitchen + bathroom exhaust to exterior.
11. Insurance broker notified, policy re-rated.
12. Separate civic unit number registered with Municipal Licensing & Standards.
