Fence Gate Installation & Repair in Toronto GTA

Fence gate installation and repair in Toronto in 2026 covers the high-stress, high-failure-rate component of every residential fencing system — gates carry the cyclical load of every open-and-close, every wind gust on a tall privacy gate, every dog or child push, and they're the part of the fence most likely to fail first. A typical Toronto fence gate scope runs $380-$2,800 depending on whether it's a standard 4-foot single cedar gate ($380-$680), a double swing-gate for vehicle access ($1,200-$2,200), a pool-enclosure self-closing gate per bylaw 626-2014 ($580-$980), or an automated swing or slide gate with motor and access control ($3,800-$12,500). RenoHouse builds and repairs cedar, pressure-treated, vinyl, ornamental aluminum, wrought-iron, and steel gates to Toronto residential code.

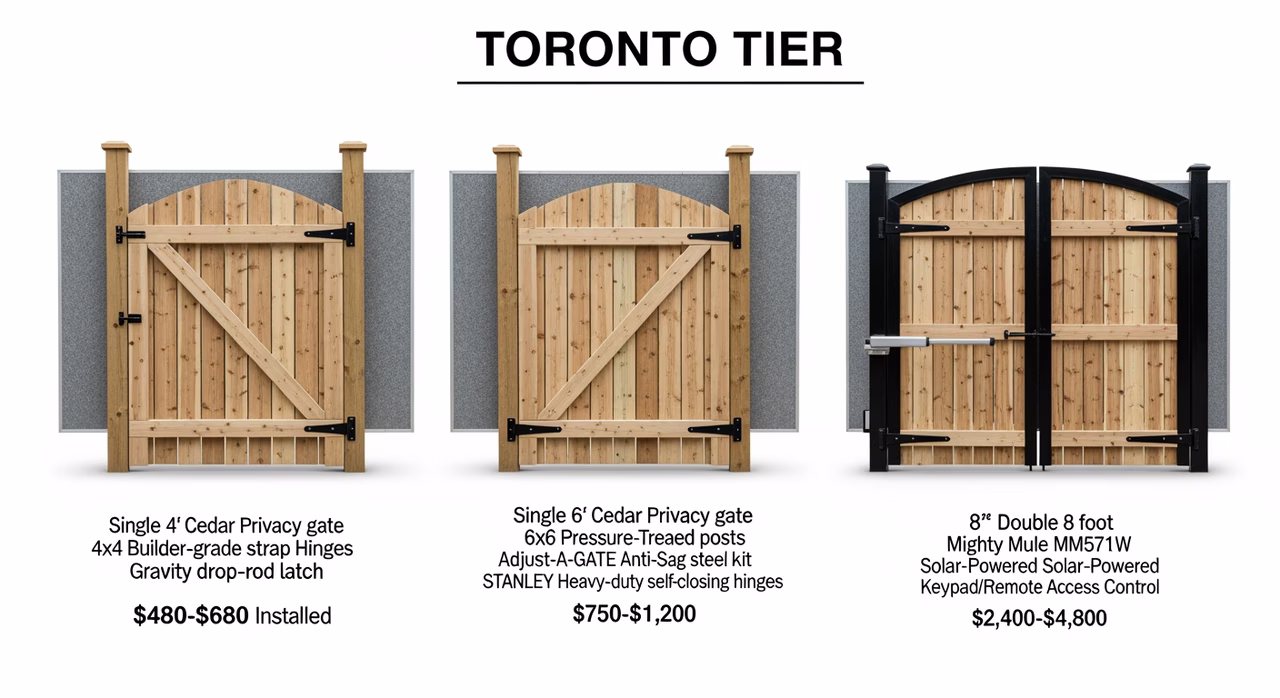

2026 GTA fence-gate cost breakdown — fully installed

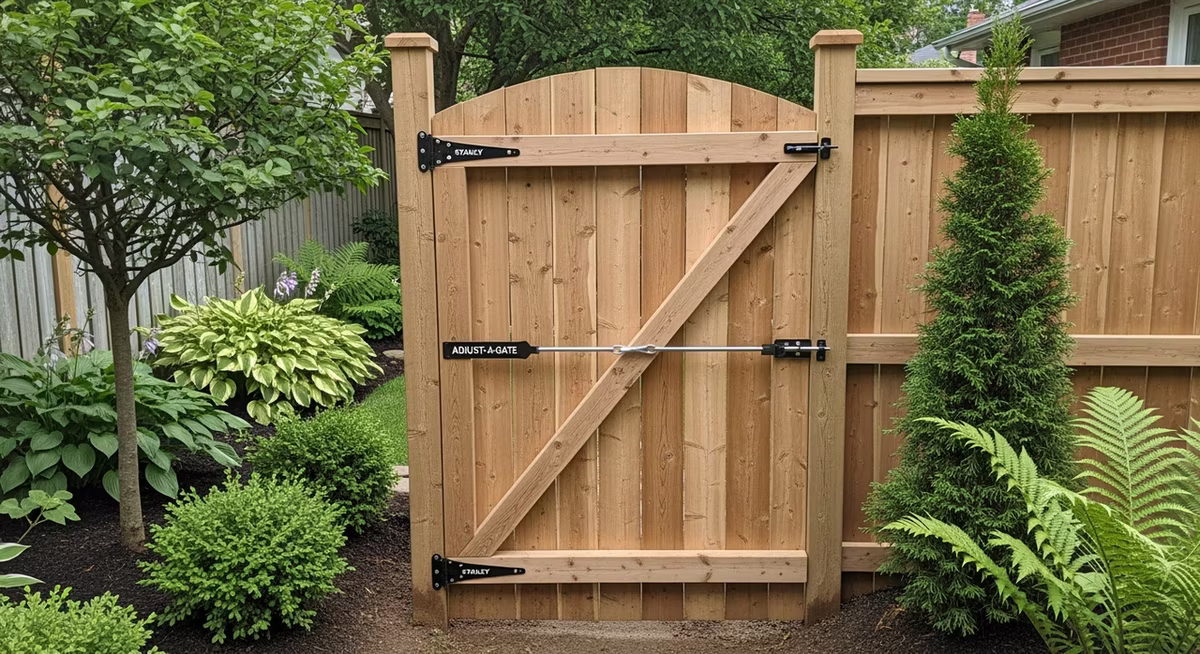

Standard cedar single gate ($380-$680, 4-foot wide pedestrian gate): Cedar 1x6 vertical pickets matching adjacent fence profile, cedar 2x4 horizontal rails (Z-braced), HDG or stainless hinges (GateMate or Stanley), HDG drop-bolt, latch with thumb-press, post-mount on existing fence post (or new 4x4 post with concrete pier to 1.2m frost depth — adds $280-$480 per post).

Premium cedar double gate ($1,200-$2,200, 8-12 foot vehicle-access double-swing): Two cedar gate panels with Z-bracing each, HDG or stainless heavy-duty hinges, dual drop-bolts (one for active and one for passive panel), centre cane-bolt, padlock-ready latch, post-mount on two new 4x4 or 6x6 cedar posts with deeper 1.2m concrete piers and lateral bracing for gate weight.

Pool-enclosure self-closing gate ($580-$980, Toronto bylaw 626-2014 compliant): Cedar or aluminum gate matching pool fence material, GateMate self-closing spring hinge or Magna-Latch self-latching mechanism (mounted to inside face of gate, key-lockable, 1.5m above grade per bylaw), single drop-bolt, no climb-aiding features within 1.2m of latch height.

Ornamental aluminum or wrought-iron gate ($1,400-$3,200): Ameristar, Specrail, Fortress ornamental aluminum or custom wrought-iron picket gate with HDG steel posts, Bommer or McKinney heavy-duty stainless hinges, mortise lock or padlock-loop latch.

Automated swing gate ($3,800-$7,800): Single or double aluminum or wrought-iron gate with Liftmaster LA400, LA500, or BFT-Italia gate operator, 12V DC battery backup, IR safety photo-eye, intercom or keypad access, low-voltage wiring, ESA notification on line-voltage tie-in.

Automated slide gate ($5,800-$12,500): Cantilever or V-track slide gate with Liftmaster, BFT, or Faac slide-gate operator, IR safety photo-eye and edge sensor, intercom or keypad access, full ESA notification, optional cellular access (Liftmaster myQ Smart Garage Hub).

Gate-construction process — what RenoHouse delivers

Step 1 — Pre-install assessment. Gate opening width (3.5-4 feet for pedestrian, 8-12 feet for vehicle, custom for non-standard), height (matching adjacent fence height per Toronto bylaw 447-2015 max 1.83m residential rear yard), post condition (new 4x4 or 6x6 cedar/PT posts on concrete piers, or existing fence-post mount if posts are sound).

Step 2 — Material spec. Cedar 1x6 vertical-grain pickets (Western Red Cedar, premium clear or knotty), cedar or PT 2x4 horizontal rails with Z-bracing, HDG or stainless hinges per CSA G164 or ASTM A153 spec for hardware durability, HDG or stainless lag-screws and bolts.

Step 3 — Post setup (new install). Ontario One Call locate before excavation. 8-10-inch concrete piers to 1.2m frost depth per OBC 9.4.2.3, 30 MPa structural concrete per CSA A23.1, Simpson Strong-Tie saddle anchor or post-base bracket cast in. Cure 48 hours.

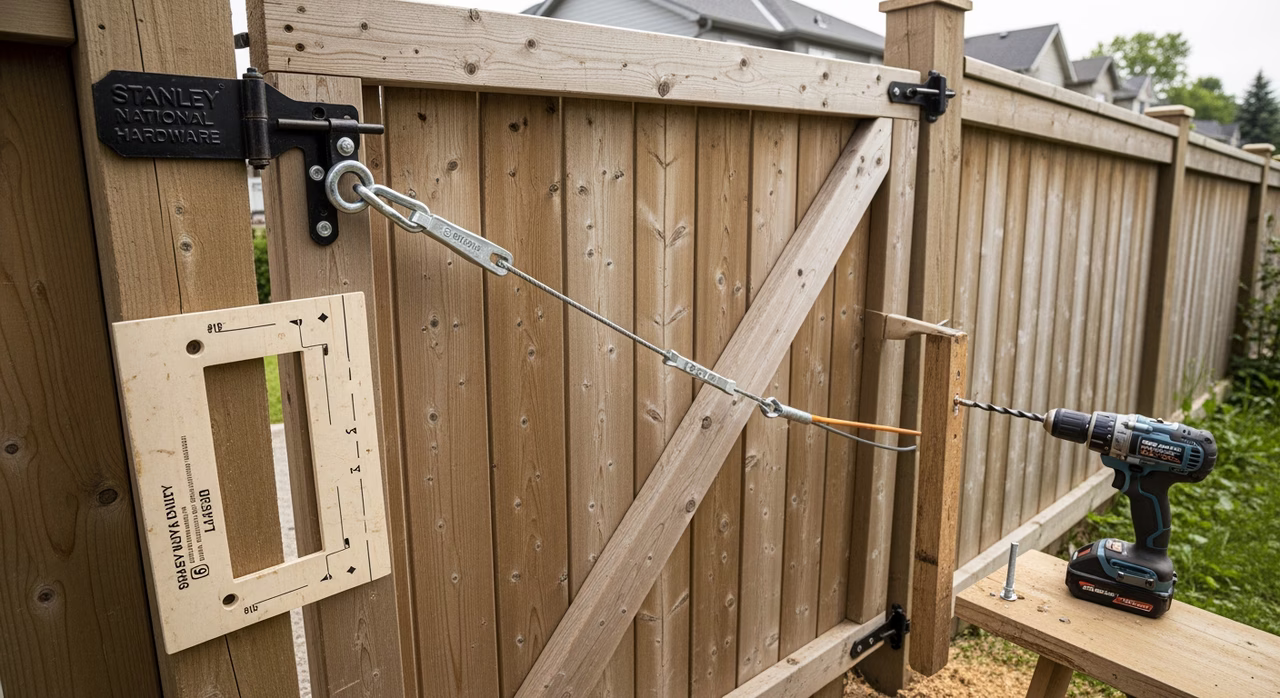

Step 4 — Gate frame construction. 2x4 horizontal top and bottom rails, 2x4 mid-rail (optional, on tall gates), Z-bracing from bottom-hinge-side to top-latch-side corner for racking resistance. Z-brace is critical on gates over 4-foot wide — without it, gate will sag from cyclical load within 1-3 years.

Step 5 — Picket install. 1x6 cedar pickets nailed or screwed to rails at 1/4-inch gap for thermal expansion, matching fence picket pattern. Toronto bylaw 447-2015 — no spike or pointed top in residential.

Step 6 — Hinge install. Heavy-duty hinges (3-4 per gate panel depending on weight), HDG or stainless self-closing spring hinge (for pool-enclosure), through-bolted (not lag-screwed only) for premium scope. Hinge alignment 1/4-inch off vertical to compensate for gravity sag.

Step 7 — Latch and drop-bolt. Self-latching mechanism for pool-enclosure (Magna-Latch). Standard latch with thumb-press for general use. Drop-bolt into ground sleeve or stop-block for tall or double gates.

Step 8 — Automation (where specified). Liftmaster, BFT, or Faac gate operator mount on post or beam, low-voltage wiring trenched 18 inches below grade, IR safety photo-eye on inside and outside, edge-sensor on slide gates, ESA notification for any line-voltage tie-in.

Step 9 — Stain or finish. Cedar gate scope includes single-coat semi-transparent stain (Cabot Premium, Sansin SDF, Penofin Cedar Premium Oil) — matches adjacent fence finish.

Step 10 — Operation test and warranty. Open-and-close cycle test (smooth swing, latch engagement, drop-bolt fit, no sag), photo documentation, warranty paperwork.

Gate hardware whitelist for Toronto

Hinges: GateMate Heavy-Duty HDG, Stanley Decorative HDG, Bommer Wrought-Iron, McKinney Stainless, National Hardware HDG.

Self-closing hinges (pool): GateMate Self-Close Spring, Tru-Close Magna-Latch Pool Gate Hinge.

Latches: Magna-Latch self-latching (pool), Stanley Gate Latch HDG, National Hardware Thumb-Press, Bommer Mortise Lock.

Drop-bolts and cane-bolts: National Hardware HDG Drop-Bolt, Stanley Cane-Bolt HDG.

Gate hardware kit: Stanley Complete Gate Kit (hinges + latch + drop-bolt + spring closure).

Gate operators: Liftmaster LA400 (light residential single), LA500 (heavy residential single), LA412PKGUL (premium single with battery), CSL24V (slide), BFT Italy Phobos (premium swing), BFT Italy Ares Ultra (premium slide), Faac S418 (slide), Came (premium commercial).

Access control: Liftmaster myQ Smart Garage Hub, Doorking 1837, Linear AP-5, KeyCorp KSE.

Photo-eye safety: Liftmaster IR-Beam, BFT Photocell Set, EMX IRB-MON.

Edge sensor: Mile-X Edge Sensor (slide gate), BFT Sensor Edge.

Lumber: Western Red Cedar (premium clear or knotty), Hi-Bor Wolmanized PT.

GTA neighbourhood considerations

Toronto core (Cabbagetown, Riverdale, Leslieville, Annex): Pre-1940 stock with original wood gates 60-90 years old. Heritage Permit on HCD streets — wrought-iron or matched-cedar profile required. Custom millwork standard.

Etobicoke (Long Branch, Sunnylea, The Kingsway): 1950s-1970s detached. Cedar single-gate standard, vehicle double-gate on larger lots.

Mississauga (Erin Mills, Streetsville, Lorne Park, Meadowvale): 1980s-2000s detached with rear-yard cedar gates. Pool-enclosure self-closing gate scope frequent.

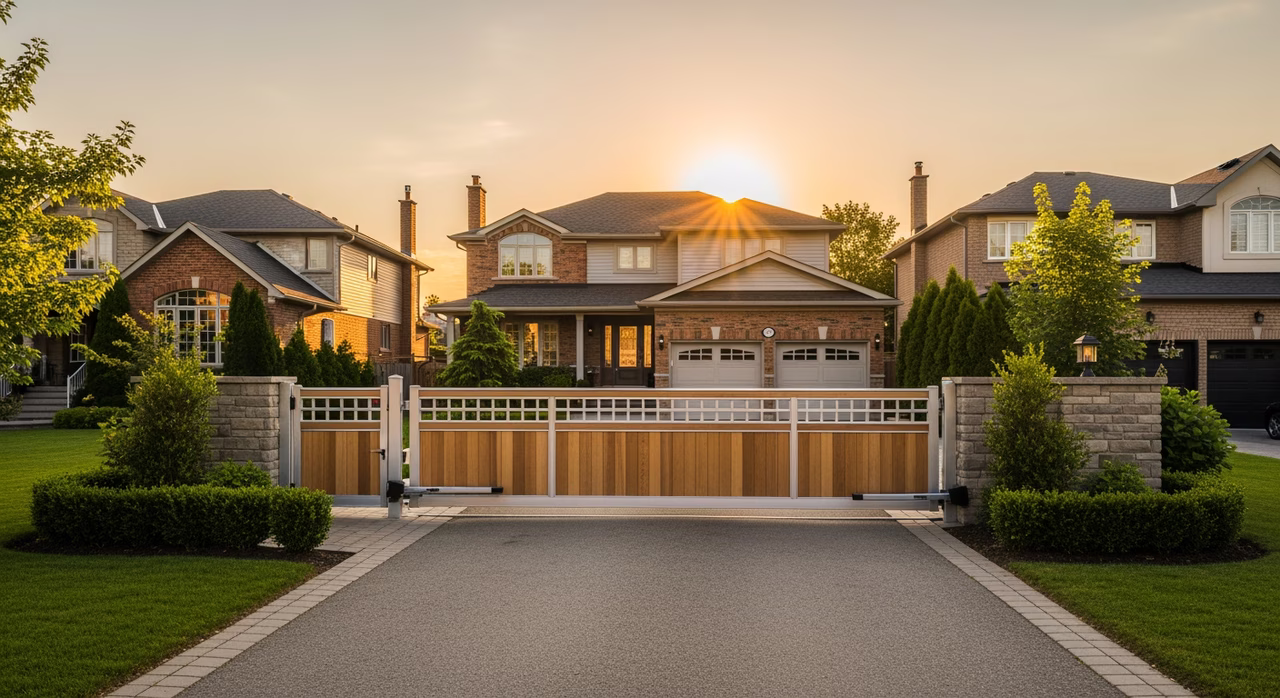

Vaughan / Maple / Woodbridge: 1990s-2010s premium estate. Italian-Canadian aesthetic preference for wrought-iron or ornamental aluminum front-yard automated gate, cedar rear-yard standard.

Markham (Unionville, Cathedraltown, Berczy, Cornell): 2000s-2010s. Cathedraltown design-review for visible front-yard gate.

Richmond Hill (Bayview Hill, Oak Ridges, Mill Pond): Estate-scale. Automated wrought-iron or aluminum front-yard gate with intercom access standard. Premium scope.

Oakville / Burlington (lakefront, Bronte): Salt-air exposure. Stainless hardware mandatory. Lakefront estate properties — premium automation common.

Aurora / King City / Caledon: Rural estate properties. Custom split-rail or wrought-iron gate. Automated long-driveway slide gate common.

Brampton: 1990s-2010s. Standard cedar gate scope.

Scarborough (Birchcliff, Cliffside, Guildwood): Lakefront. Salt-air, stainless hardware.

Permits, compliance, and Toronto bylaw references

Toronto bylaw 447-2015 governs residential fencing including gates:

• Maximum height 1.83m residential rear yard
• Maximum height 1.22m front yard
• No spike or pointed top in residential

Toronto bylaw 626-2014 governs pool-enclosure fences and gates:

• Minimum 1.22m height
• Self-closing gate with self-latching mechanism, latch height minimum 1.5m above grade
• No climb-aiding features within 1.2m of latch
• Hard-surface inside fence within 1.2m of fence/gate

Toronto Building Permit:

• Not required for residential fences/gates under 1.83m in rear yard
• Required for over 1.83m
• Required for retaining wall integration over 0.6m
• Pool-enclosure permit per bylaw 626-2014

Automated gate scope:

• ESA notification (Electrical Safety Authority) for any line-voltage tie-in to gate operator
• ESA inspection of GFCI-protected exterior outlet for gate operator
• ULC-S332 safety standard applies to automated gates: IR safety photo-eye, edge sensor on slide gates, auto-reverse on swing gates
• UL 325 + CSA C22.2 No. 247 opener electrical safety standard

OBC 9.4.2.3 mandates 1.2m frost depth for any continuous foundation.

WSIB clearance + $2M general liability + $1M property damage required on every Toronto residential fence-gate install.

FAQ

What's the standard width for a pedestrian gate?

3.5-4 feet (1.07-1.22m) is standard for single-leaf pedestrian gate. Vehicle access typically 8-12 feet (2.4-3.7m) for double-swing or 10-14 feet single-leaf slide.

Will my gate sag over time?

Properly built gates with Z-bracing (diagonal corner-to-corner brace) resist sag. Without Z-bracing, gates over 4 feet wide will sag within 1-3 years from cyclical load.

Do I need a permit for a gate?

Residential gate under 1.83m: no permit. Over 1.83m: yes. Pool-enclosure gate per bylaw 626-2014 has specific permit requirements.

What's the difference between regular and pool-enclosure gates?

Pool-enclosure requires: self-closing hinge (returns gate to closed position automatically), self-latching mechanism with latch height min 1.5m above grade (Magna-Latch standard), no climb-aiding features, hard-surface inside fence.

Can you automate my existing gate?

Yes for swing gates with adequate clearance and structural post sufficient for operator mount. Slide-gate retrofit requires V-track or cantilever guides installed.

How long does gate installation take?

Single cedar gate on new post: 1 day. Double cedar gate with new posts: 1-2 days. Automated swing gate: 2-3 days. Automated slide gate: 3-5 days.

What about gate alignment problems?

Concrete-pier post on shallow footing (under 1.2m Toronto frost depth) will heave in winter, causing gate misalignment. Standard repair: re-pour pier to 1.2m or surface-mount Simpson Strong-Tie bracket.

Can you install a gate in winter?

Concrete-pier work requires above-freezing ground temperature — typical season April-November. Surface-mount Simpson bracket scope possible in winter.

Do you handle pool-enclosure gate compliance?

Yes — Magna-Latch self-closing/self-latching hardware, hinge spring, height verification, no-climb-features audit. Compliance suitable for City inspection.

What about wrought-iron gates?

Yes — Eastern Wrought Iron or local custom fabricator coordination. Premium scope. HDG or stainless hinge hardware mandatory for Toronto Climate Zone 2.

Can you do automated keypad or intercom access?

Yes — Doorking 1837, Linear AP-5, Liftmaster myQ Smart Garage Hub, or BFT B-Eba access control. Cellular access (no phone-line required) standard.

What warranty?

Cedar gate: 5-year workmanship, 3-year hardware. Automated gate: 5-year workmanship, 2-year operator (manufacturer warranty pass-through Liftmaster 5-year, BFT 3-year).

Need a quote in the GTA?

Call RenoHouse at 289-212-2345 for a free fence-gate consultation. We serve Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Thornhill, Oakville, Burlington, Etobicoke, Scarborough, North York, Aurora, King City, Caledon, and all surrounding GTA communities. Russian-speaking coordination available. Same-week scheduling April-November, written fixed-price quote, full workmanship warranty.

Toronto/GTA neighborhood considerations

• Forest Hill / Rosedale / Lawrence Park (heritage): Heritage matching — wrought-iron pickets on stone-cap masonry plinth + period-correct cast-bronze hardware (Sun Valley, BSH Hardware). Typical custom-fab gate $2,800-$6,500 plus stone-pier rebuild $1,200-$2,800/pier.
• North York / Scarborough / Etobicoke (60s-70s): 1960s chain-link or wood-board gate replacement — modern equivalent powder-coated aluminum (Regis Aluminum, Ironworld) or pressure-treated SPF $1.8K-$3.2K including post-set in concrete + Tarter Gate Wheel kit.
• Mississauga / Brampton / Vaughan (90s+): 1990s pressure-treated wood gate sagging at hinge — typical refresh with new 4x4 PT post + Stanley HD 6-inch gate hinge (zinc-plated) + cedar/PT board replacement $480-$1,200.
• Caledon / King City / Aurora (rural well): Rural driveway entry gate — Mighty Mule MM560 or LiftMaster LA412 swing-gate operator + 16-foot estate gate $3.8K-$9.5K including 12V solar trickle charger. Frost-line post-set at 1.2m depth (vs urban 1.0m) per OBC 9.12.2.3.
• Downtown condos: Balcony or patio access gate within condo unit — Section 98 alteration approval mandatory. Typical scope is internal pet/child barrier (Cardinal Gates SS-30) $280-$580.

Permit + license: Toronto bylaw 447 fence + 591-2017 swimming-pool fence (1.2m+ self-closing self-latching gate). OBC 9.12.2.3 post-set depth (urban 1m, rural 1.2m). No trade license but WSIB clearance + $2M general liability.
