Interior Barn Door Installation — Toronto GTA

Barn door installation in Toronto in 2026 is one of the highest-demand decorative door scopes — barn doors have evolved from rustic farmhouse-style to refined contemporary feature, popular in master-bedroom-to-ensuite transitions, home-office entries, walk-in pantry openings, and home-theatre entries. The top-mounted barn-door track + sliding panel system delivers the same space-saving benefit as a pocket-door (eliminates swing-clearance) without the wall-cavity demolition scope. The trade-off: the slab is visible against the adjacent wall when open (vs hidden in the pocket cavity).

Barn-door type selection:

Builder-grade single-barn (Real Hardware top-mounted track): Standard top-mounted aluminum or steel track on V-roller wheels, paint-grade MDF slab, white-only or basic stain finish, basic flat-bar pull handle. Suitable for 36-inch or 42-inch openings with slab weights up to 80 lbs. $480-$720 installed.

Mid-range single-barn (Goldberg / Krownlab top-mounted): Premium top-mounted track with soft-close damper, factory-stained solid-pine or maple slab, premium pull-handle hardware. Suitable for 36-inch to 48-inch openings with slab weights up to 150 lbs. $980-$1,650 installed.

Premium single or double-barn (Cavity Sliders Barn Pro top-hung): Premium top-hung soft-close system with custom solid-wood slab in walnut, oak, or premium hardwood; full-height bypass track for double-barn-door system; minimal floor-clearance gap; brushed-metal or matte-black hardware. Suitable for premium installs on luxury homes. $2,400-$4,200 installed.

Glass-panel barn doors: Tempered safety-glass (frameless or framed) on barn-door track for industrial-loft aesthetic. CAN/CGSB-12.1 tempered mandatory. $1,800-$3,500 installed.

Specialty barn-door configurations:

• Soft-close damper (mid-range and premium standard since 2018): Hydraulic damper at end-of-travel prevents slab slam into wall. Adds $80-$180.
• Floor-guide-pin or floor-mounted-guide-track: Eliminates slab-swing perpendicular to wall during slide. Standard on premium scopes.
• Privacy-lock and indicator-pin: Side-pin engaging into wall-mount catch for privacy or sound dampening. Adds $40-$120.

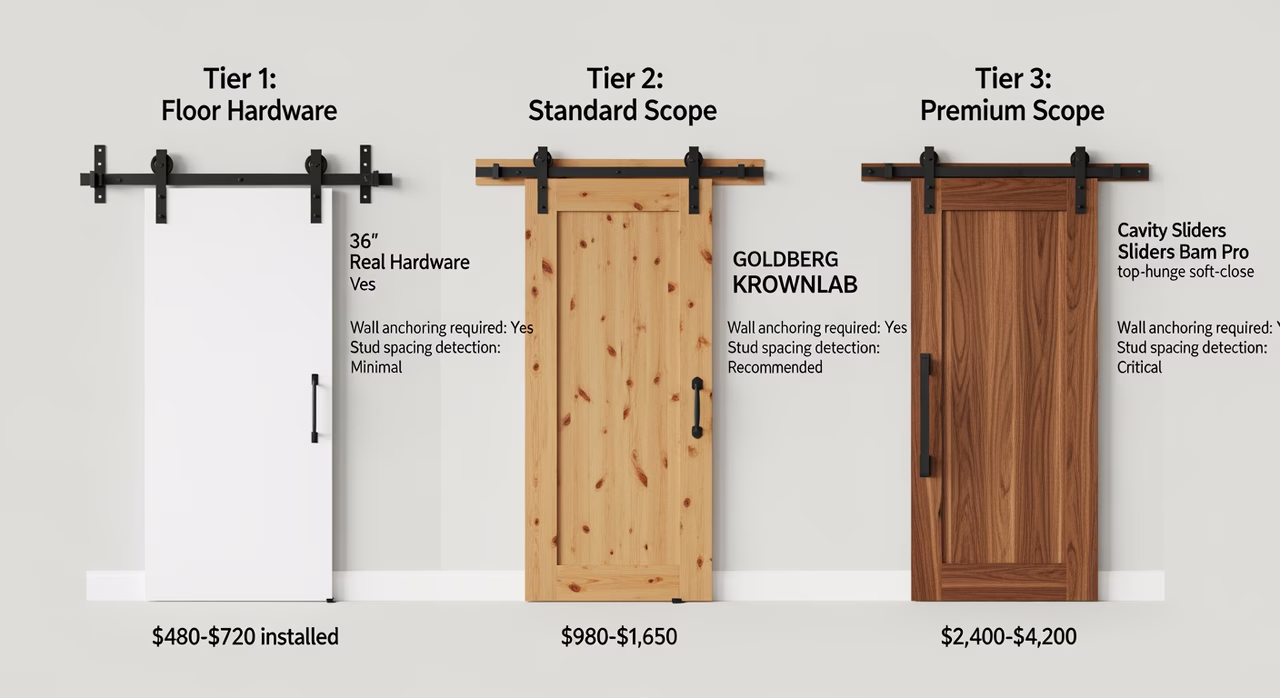

2026 GTA pricing tiers (per opening, installed):

• Floor scope ($480-$720): Real Hardware builder-grade 36-inch barn-door track with V-roller, paint-grade MDF slab, white-only finish, basic flat-bar pull. Suitable for budget bedroom or pantry openings.

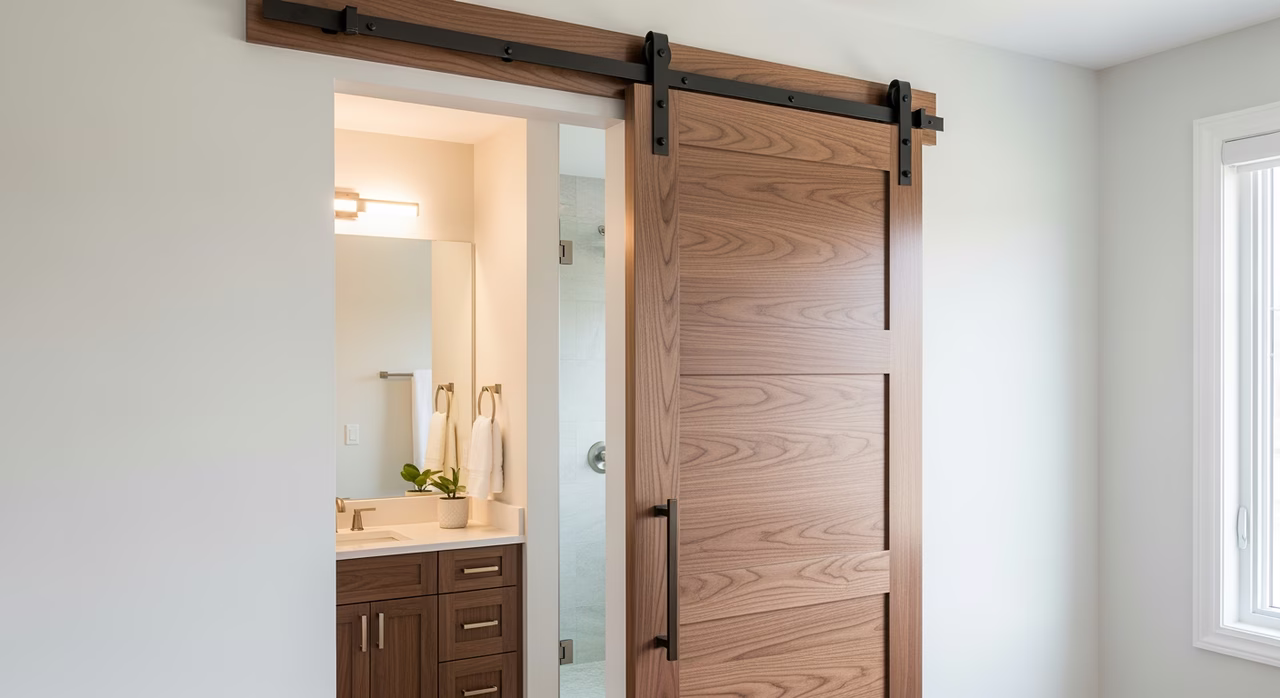

• Standard scope ($980-$1,650): Goldberg or Krownlab top-mounted barn-door system with soft-close damper, factory-stained solid-pine or maple slab, premium pull. Suitable for mid-range master-bedroom-to-ensuite or home-office entry.
• Premium scope ($2,400-$4,200): Cavity Sliders Barn Pro top-hung soft-close system with custom solid-wood walnut or oak slab, integrated full-height bypass track for double-barn-door system. Suitable for high-end luxury home or formal-room transitions.

OBC and code compliance:

OBC 9.5.3 minimum ceiling height (2.1m living areas) — barn-door tracks are mounted above the existing door header on the wall, typically 8-12 inches above; verify ceiling clearance during quote.

Wall-anchor requirement: the top-mounted track must be anchored to solid wood framing (NOT into drywall alone). Stud-spacing detection (16-inch or 24-inch O.C.) determines track-mounting hardware: if track-length spans multiple studs, lag-bolts at every stud crossing; if not, a 2x8 or 2x10 SPF wall-cleat must be installed first to provide continuous solid backing.

Egress: barn-doors on bedroom egress doors must be openable from interior without key or special tool — magnetic-latch only on egress doors. Decorative-lock barn-doors permitted on non-egress doors (bathroom, ensuite, walk-in closet).

Tempered safety glass on glass-panel barn-doors: CAN/CGSB-12.1 mandatory if barn-door spans within 600mm of an exterior door, within 460mm of finished floor, or in a shower/bath enclosure.

Process — what RenoHouse delivers on every install:

1. In-home measurement and wall assessment. Doorway width and height, ceiling clearance above existing header, wall-side clearance for slab travel (slab travel distance equals slab width + 2-4 inch overlap), stud-finder pass to identify framing for track-anchor, electrical scan for hidden wiring in track-mount path.
2. Wall-cleat install (if needed). 2x8 or 2x10 SPF wall-cleat lag-bolted to studs along track-mount line for continuous solid backing; cleat painted or stained to match wall finish before track install.

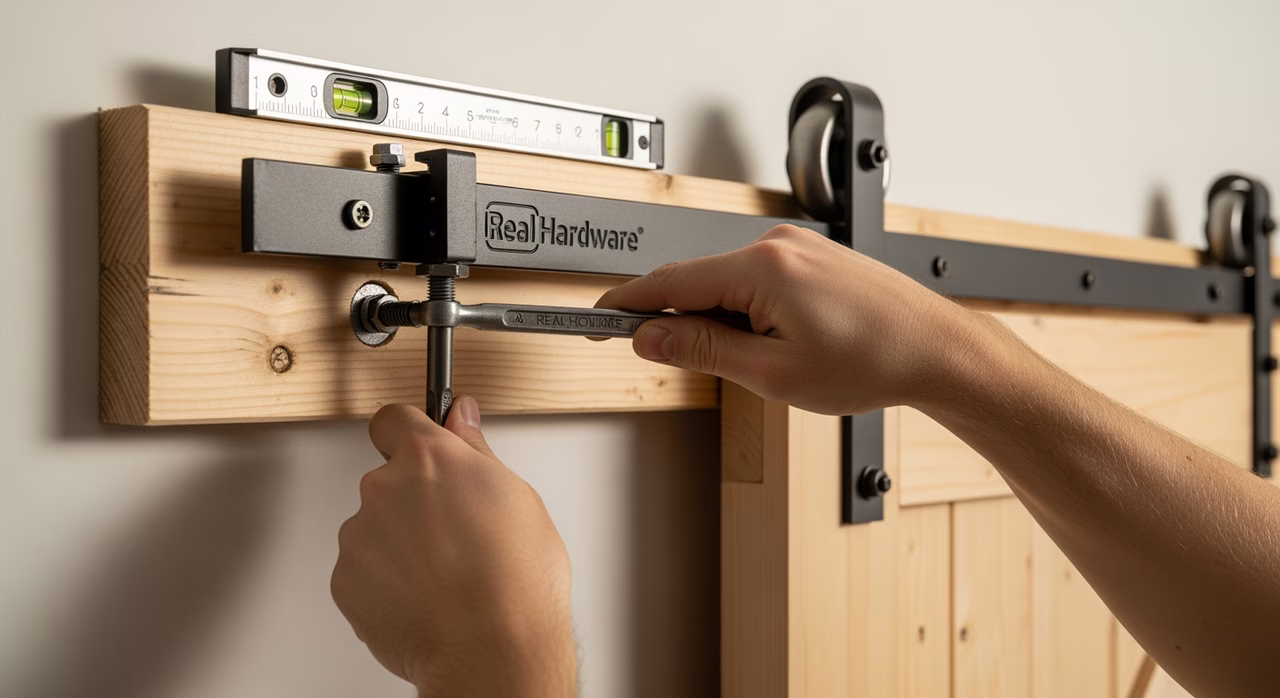

3. Track install. Barn-door track lag-bolted to wall-cleat (or directly to studs if track-length aligns with stud-spacing) with 4-inch lag-bolts at every anchor-point; level-check horizontal across track with 6-foot level.
4. Door slab install. Top-mounted V-roller wheels (builder-grade) or top-hung trolley (premium) attached to slab; slab lifted onto track (2-person lift mandatory on premium scope — solid-wood slabs over 100 lbs); roller alignment adjusted; floor-guide-pin engaged.
5. Hardware install. Pull-handle, decorative strap-and-hinge (decorative-only on top-mounted barn doors), privacy-lock if specified.
6. Final testing. Smooth slide operation, soft-close engagement (premium scope), no rub on adjacent wall, customer walkthrough.

Brand whitelist for Toronto barn-door scope:

• Builder-grade track systems: Real Hardware (US-made, broad mid-range catalogue), MyArbor (US-made, basic black-or-white finish), Quiet Glide.
• Mid-range track systems: Goldberg Brothers (US-made, premium roller and track), Krownlab (US-made, modern minimalist), Custom Service Hardware.
• Premium track systems: Cavity Sliders Barn Pro (Australian-engineered, top-hung soft-close), Stanley Barn Hardware (commercial-grade premium), Specialty Doors and Hardware.
• Barn-door slabs: Custom solid-wood slabs from Toronto millwork shops (Walden Woods, McKenzie Wood Products), JELD-WEN Designer Door, Sun Mountain Door custom.
• Slab finishes: Factory-stained walnut, oak, maple; paint-grade MDF; reclaimed barn-wood (specialty supplier).
• Hardware finishes: Matte-black, brushed-nickel, oil-rubbed-bronze, polished-brass.

Common Toronto-specific pain points:

Wall not deep enough for slab clearance (slab thickness 1-3/4 inch + bracket projection 2-3 inch = 3-5 inch wall clearance needed): on tight-clearance walls (adjacent to perpendicular wall, against staircase, etc.), barn-door is not feasible — pocket-door or swing-door is the alternative. Visible-slab against adjacent wall (the slab is not hidden when open): some customers expect pocket-door-style invisibility and are disappointed by visible-slab — quote-time expectation-setting is critical. Older 1950s-1970s GTA detached with plaster-and-lath walls (not drywall): cannot accept lag-bolt anchors directly into plaster; full wall-cleat scope mandatory. Heritage stock with non-standard ceiling heights and ornate cornice molding: track-mount location requires custom adaptation, sometimes ceiling-mount instead of wall-mount.

WSIB clearance + $2M general liability + $1M property damage insurance required on every Toronto residential barn-door install we submit. RenoHouse serves Toronto, Mississauga, Brampton, Vaughan, Markham, Richmond Hill, Thornhill, Oakville, Burlington, Etobicoke, Scarborough, North York, and all GTA communities. Russian-speaking coordination available. Call 289-212-2345 for a free in-home barn-door consultation.

Toronto/GTA neighborhood considerations

• Forest Hill / Rosedale / Lawrence Park (heritage): Heritage rolling-barn-door hardware (Real Carriage Door & Sliding Hardware Co., Goldberg Brothers Vintage Series) bronze-patina or black-iron strap-hinge style + reclaimed 1.75" white-oak slab door — $4.4K-$8.4K installed. Heritage Permit not triggered (interior).
• North York / Scarborough / Etobicoke (60s-70s): Mid-tier rolling-track (Krownlab Lin, Specialty Doors Hettich) + 1-3/4" solid-pine or paint-grade poplar slab — $1.2K-$2.8K installed. Lath-and-plaster wall pre-1965 needs continuous 2x10 backer plate ($240-$420 added) for track-load 150 lb door.
• Mississauga / Brampton / Vaughan (90s+): Big-box Renin Continental + Powell solid-MDF slab — $640-$1,280 installed. 90s+ drywall + 16" o.c. studs — clean install with through-bolts at studs.
• Caledon / King City / Aurora (rural large-lot): Estate-grade Goldberg Brothers Tracker + 2-1/4" solid white-oak or walnut slab + bronze-patina hardware — $4.8K-$14K. Often paired with custom interior architectural-millwork scope.
• Downtown condos: Slim 1-3/8" hollow-core or MDF slab + Specialty Doors Hettich slim-track — $980-$2,200. Concrete-block wall — Hilti HUS3 screw-anchor at track for 150-lb door load.

Standards: ANSI/BHMA A156.14 sliding door hardware. Track length = 2x door width (door slides full open + full closed). Floor clearance 3/8-1/2" with floor-guide (no jump-rail). Door-weight: hollow-core 30-50 lb, solid-core 60-90 lb, solid-wood 100-160 lb — match hardware to weight per BHMA Grade 1/2/3.
