Whole-Home Humidifier Installation — Toronto GTA

Bypass / powered-fan / steam — Aprilaire, Honeywell, GeneralAire

Whole-home humidifier installation in Toronto pairs with forced-air furnace or heat pump system to maintain 35-45% relative humidity in winter — eliminating dry-air symptoms (skin cracking, static, sinus issues, wood floor gapping). RenoHouse coordinates Aprilaire, Honeywell, and GeneralAire installs through our HVAC tech with plumbing tie-in and ESA-permitted 24V control wiring. Pricing $520 – $1,650 installed Q2 2026 GTA.

Quick answer

Humidifier add-on at the time of furnace / heat pump install adds only $400 – $600 incremental (vs $520 – $1,650 standalone) — bundle when possible.

What's included

• HVAC tech site visit & humidity demand sizing
• Humidifier unit + mounting on supply or return plenum

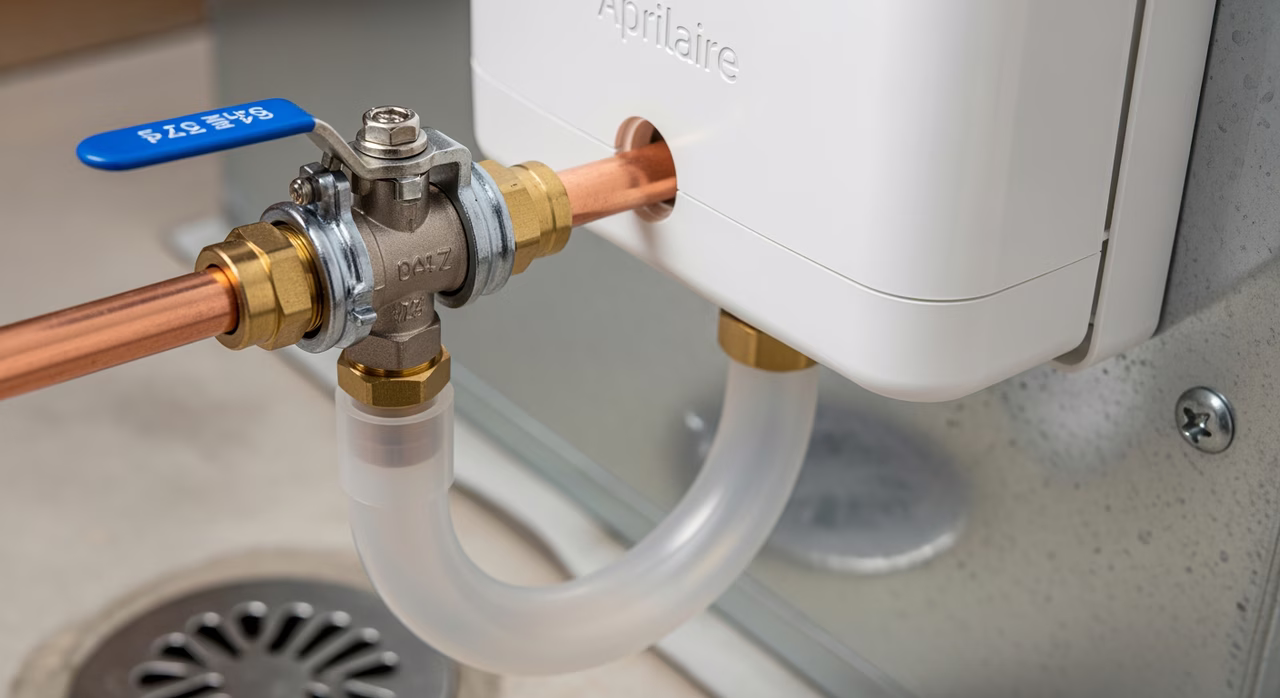

• Plumbing tie-in (cold water supply via saddle valve or tee + shutoff)
• 24V wiring tie-in to furnace control board (ESA permit if running through wall)
• Humidistat (manual or smart-thermostat integrated)
• Drain line to floor drain (bypass / powered fan) OR steam canister tie-in
• Commissioning: humidity test, fan-cycle test, flow rate verification
• 5-year manufacturer warranty + 1-year RenoHouse labour

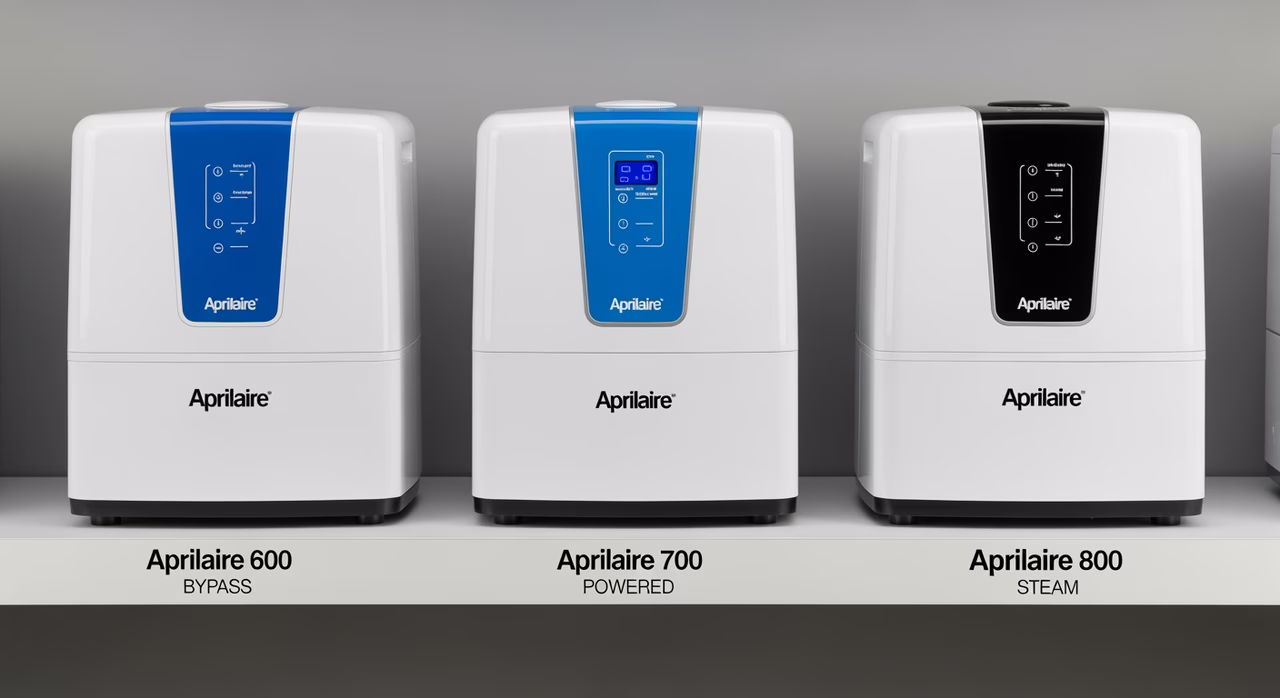

Type comparison

1. Bypass humidifier (Aprilaire 600, Honeywell HE120)

• Air diverted from supply plenum through evaporator pad, picks up moisture, returns via bypass duct to return plenum
• No fan — uses HVAC blower
• No electricity required (except humidistat)
• Output: ~12 gallons/day at full
• Pros: cheapest, simple, reliable
• Cons: lower output, needs HVAC running to humidify

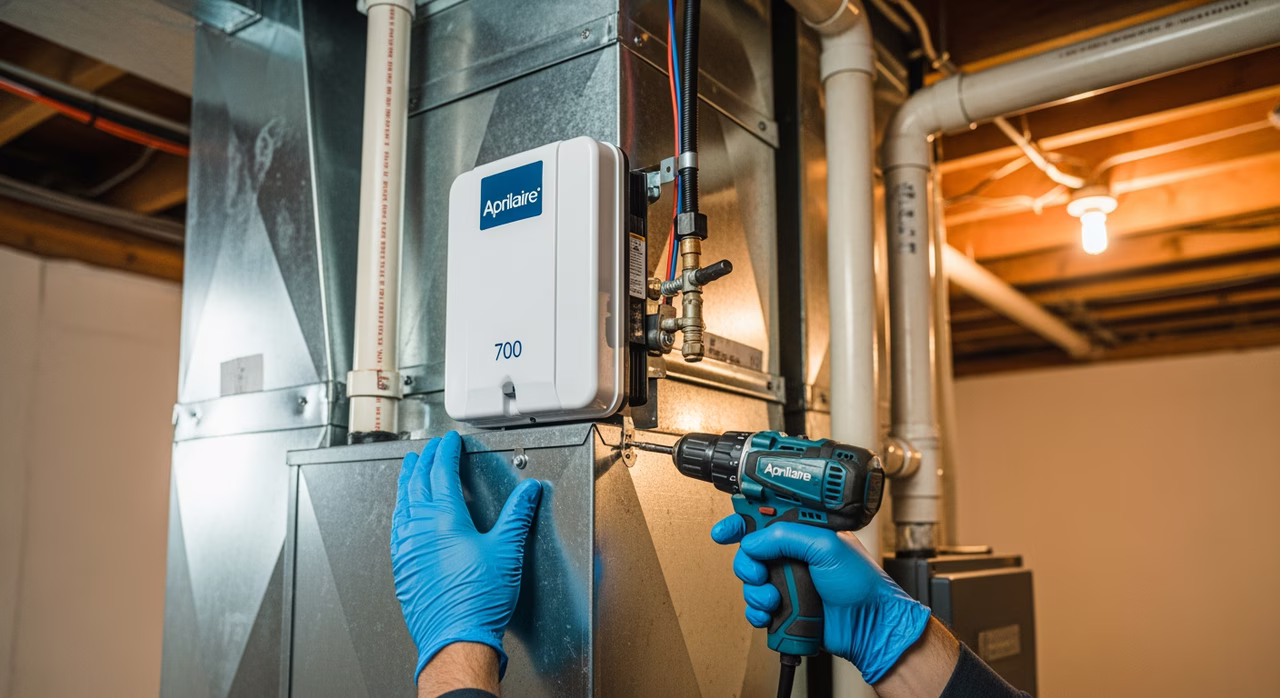

2. Powered-fan humidifier (Aprilaire 700, Honeywell HE300)

• Same pad concept BUT with own fan
• Independent of HVAC blower — can humidify in fan-on mode
• Output: ~18 gallons/day at full
• Pros: best output for typical home, runs independently
• Cons: small electrical, slightly noisier

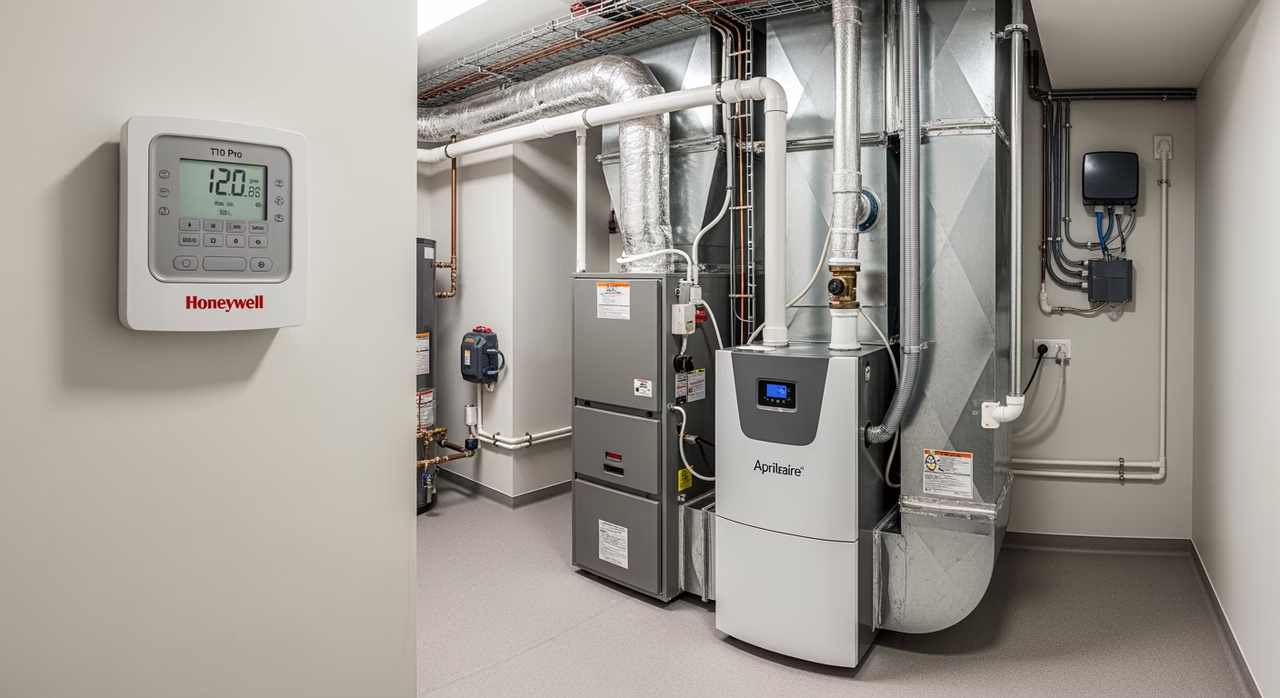

3. Steam humidifier (Aprilaire 800, Honeywell HM509)

• Boils water in canister, injects steam into supply plenum
• Highest output (~22-34 gallons/day)
• Most precise humidity control (1% RH increments)
• Pros: best for very dry homes, no pad to maintain, fastest response
• Cons: most expensive, requires more electrical (120V), canister replacement cost ($60-$120/yr)

Brand selection (Q2 2026)

Toronto-specific considerations

• Toronto winter humidity drops to 25-35% RH indoors — too dry for comfort (target 35-45%). Most older detached homes need a humidifier; newer tight builds with HRV may not need separate humidifier.
• Hardwood floor protection — gapping starts below 30% RH. Forest Hill, Rosedale, Lawrence Park homes with premium hardwood almost always benefit from humidifier.
• Allergy / asthma management — proper humidity 40-50% reduces dust mite issues. Steam humidifier preferred for allergy-prone households.
• Cold-climate heat pump homes — heat pumps don't dry air as aggressively as gas furnaces (lower supply temp = less evaporation). Powered humidifier rather than bypass works better.
• Condo / hydronic radiator homes — central humidifier not applicable; use portable room humidifiers. Boiler systems CAN have steam humidifier on a separate AHU but rare in residential.

Permits & compliance

• ECRA/ESA permit for 24V control tie-in (often inspector-waived as low-voltage)
• OBC 2024 Plumbing 7.6 for the water supply tie-in (saddle valve permitted for ≤2 GPH low-flow humidifier; otherwise tee + shutoff)
• No TSSA permit (humidifier not gas-fired)
• No Toronto Building Permit (no envelope change)

Rebates (Q2 2026)

• HRS Smart Thermostat $75 — if humidifier is integrated with smart thermostat (Honeywell T10 Pro, Ecobee Premium + add-on)
• Humidifier alone NOT eligible for HRS direct
• Greener Homes Grant: NOT eligible (humidifier is comfort accessory, not envelope/efficiency)

FAQ

Q: How much does a humidifier installation cost in Toronto? A: $520 – $1,650 standalone, depending on type (bypass / powered / steam). Most homes install powered-fan models at $780 – $1,150. Add-on during furnace/heat pump install: only $400 – $600 incremental.

Q: Which type should I get? A: Bypass for budget / small homes (≤ 1,500 sq ft). Powered fan for most Toronto homes (1,500-3,500 sq ft) — best value. Steam for very dry homes, allergy-prone households, or homes with premium hardwood floors needing tight humidity control. Free site assessment recommends based on your home's volume, HVAC type, and comfort goals.

Q: Will it work with my heat pump (not furnace)? A: Yes — humidifiers integrate with most forced-air heat pumps. Powered-fan or steam preferred (heat pumps run longer cycles at lower supply temp; bypass needs higher airflow). Some heat pump systems have integrated humidifier control already; we verify compatibility at consultation.

Q: How much water does it use? A: Bypass: 8-12 gallons/day at peak. Powered: 12-18 gallons/day. Steam: 18-34 gallons/day. Toronto Water $1.20-$1.80/m³ in 2026 — $5-$15/month in deep winter. Steam units also consume electricity (~3-5 kWh/day at peak).

Q: What's the maintenance? A: Replace evaporator pad annually ($30-$60). Steam canister replacement every 1-3 years ($60-$120). Annual cleaning of saddle valve / drain ($120 service visit, or DIY). Without maintenance, mineral scale clogs the pad / nozzle, reducing output.

Q: Will my humidity be too high? A: Properly set humidistat (35-45% target) and properly sized humidifier prevents over-humidification. Symptoms of over-humidification: window condensation, attic moisture, basement musty smell. We commission with a hygrometer to verify steady-state humidity is in target range.

Q: Steam humidifier — worth the premium? A: For very dry homes (constant ≤ 30% RH despite running bypass/powered), yes. For tight new builds with mild dryness, no — bypass or powered is sufficient. For allergy households (asthma, COPD), steam is recommended (no pad biofilm). $400-$700 premium over powered.

Q: How long does install take? A: 3-5 hours for retrofit. 1.5-2 hours if installed at same time as furnace / heat pump. Includes plumbing tie-in, electrical, humidistat, commissioning.

Q: Do I need a permit? A: ECRA/ESA permit technically required for the 24V control tie-in if new wiring passes through wall. Most installers (and ESA inspectors) treat low-voltage humidifier wiring as exempt under section 16 of the OESC; we include the permit fee in our quote and pull when required.

Q: What about portable humidifiers — same effect? A: Portable room humidifiers (Honeywell HCM350, Vicks V745) cover one room only. Need multiple units for whole-home effect. Higher per-unit cost over time (more energy, more maintenance, more refilling). Whole-home humidifier is the right answer for Toronto detached homes.

Q: Will it stop window condensation problems? A: Quite the opposite — too much humidity CAUSES window condensation, especially on old single-pane or cold-frame windows. Properly set humidistat (35-45% target, dropping to 30% in extreme cold) prevents condensation. If your home has aggressive condensation already, address the windows / vapor barrier first; humidifier without ventilation upgrade can make it worse.

Q: What's the warranty? A: 5-year parts on premium Aprilaire / GeneralAire (steam Aprilaire 800 is 5-year). 2-3 year parts on Honeywell. 1-year RenoHouse labour warranty.

Toronto/GTA neighborhood considerations

• Forest Hill / Rosedale / Lawrence Park (heritage): Heritage detached + atmospheric-vent gas furnace — Aprilaire 600 or Honeywell HE360 bypass humidifier on supply plenum. Typical $580-$880 installed + furnace humidistat. Avoid steam in heritage with plaster walls (Aprilaire 800 too aggressive).
• North York / Scarborough / Etobicoke (60s-70s): 1960s standard forced-air — Aprilaire 600 bypass on supply plenum + Aprilaire 76 digital humidistat. $480-$780 installed.
• Mississauga / Brampton / Vaughan (90s+): 1990s builder bypass humidifier (often disconnected) — typical scope is service + reactivation OR upgrade to Aprilaire 700 power-fan model. $380-$680.
• Caledon / King City / Aurora (rural well): Rural detached + well-water + radiant or forced-air — Aprilaire 800 steam (well-water needs softener upstream) + dedicated 240V circuit. $1,800-$2,800 installed.
• Downtown condos: Vertical-stack fan-coil — no humidifier tie-in possible. Portable Aprilaire 350 console or Boneco 7147 mid-room console $280-$580.

Permit + license: Skilled Trades Ontario 306A plumber on hot-water tie-in (humidifier supply). ECRA/ESA 309A on dedicated 240V (steam-model). CSA B125.3 fittings. No standalone permit but TSSA G2 if disrupting gas-furnace plenum. No general permit but Toronto Building Permit at major HVAC mod.
