3D Shaped Stretch Ceilings: Domes, Waves, and Sculptural Designs for Toronto

# 3D Shaped Stretch Ceilings: Domes, Waves, and Sculptural Designs for Toronto

Beyond flat and multi-level, stretch ceilings can be sculpted into three-dimensional curved shapes - domes, waves, cones, false drum chandeliers - using flexible aluminum profiles bent on jigs and pre-cut PVC films designed for compound curves. This is the high-design end of the category, used in luxury homes, hotel lobbies, and commercial showpiece spaces. This guide covers the design vocabulary, install method, brand availability, and 2026 GTA pricing.

For broader context, see our Toronto stretch ceiling complete guide. Related: multi-level stretch ceiling, Clipso vs Barrisol vs Newmat.

The Design Vocabulary

Dome ceiling: A circular or elliptical raised dome rising 30-80 cm above the surrounding flat plane. The dome is typically backlit from above, glowing softly downward through translucent fabric or PVC. Most striking in dining rooms, foyers, and master bedrooms. Wave ceiling: Continuous undulating surface across the room, like a frozen ocean wave. Heights vary 20-50 cm across the wave geometry. Often paired with linear cove lighting to emphasize the wave crests. Used in restaurants, cafes, and modern condo lobbies. Cone ceiling: Inverted cone or pyramid rising into the ceiling cavity, with apex at the centre. Sometimes paired with a chandelier hung at the apex. Striking in dining rooms. False drum chandelier: A central drum or barrel shape protruding downward from the ceiling, lit from inside, mimicking a fabric drum chandelier without the actual fixture. The "drum" is a stretched membrane shape. Flowing organic shapes: Asymmetric biomorphic curves following the room layout, popular in high-end designer projects. Inverted dome / coffer dome: The dome rises into the ceiling rather than dropping down - the perimeter is flat and the centre recedes upward in a hemispherical pocket.

How 3D Profiles Work

The aluminum perimeter profile that holds the stretch ceiling membrane comes in standard straight lengths (2-3 m) for flat ceilings. For 3D shapes, the profile must follow a curved geometry. Two approaches:

Pre-bent flexible profile: Some manufacturers (Barrisol, Clipso, Cosmolight) supply flexible aluminum or PVC profiles that can be bent on-site or in-shop to follow curves. Bending radius minimum 200-400 mm depending on profile type. Custom-fabricated rigid profile: For specific designs, profiles are custom-cut on a CNC bender to match the design. This is the premium approach used by Barrisol on signature projects (Burj Khalifa, Louis Vuitton stores).

Once the profile is mounted to the structural ceiling following the curve, the membrane is pre-cut at the factory to match. The harpoon-welded edge follows the curved geometry. The membrane is then heat-stretched and hooked, conforming to the 3D shape as it cools.

Which Brands Support 3D

Premium tier:

• Barrisol 3D: the strongest 3D capability. Custom-fabricated profiles, pre-cut membranes, designer support.
• Clipso 3D: flexible profile system, supports dome and wave with on-site bending.
• Newmat 3D: custom commercial 3D for theatres and museums.

Mid-tier:

• MSD Premium with flexible profile: supports dome and wave on residential scale.
• Cosmolight: specializes in 3D and backlit, widely used in Russian-Canadian installs.

Economy: Halead and Bauf do not have meaningful 3D capability. 3D is a premium-tier feature.

Cost Breakdown (2026 GTA)

3D stretch ceilings are firmly premium-tier:

Total examples:

• 200 sqft master bedroom with central 1.5 m dome (mid-tier): $6,500-$9,500
• 400 sqft dining room with full wave ceiling and backlit (premium): $15,000-$25,000
• 600 sqft foyer with 3 m diameter signature dome (Barrisol premium): $30,000-$50,000

3D is for projects where the ceiling is a design feature, not a finish. Budget accordingly.

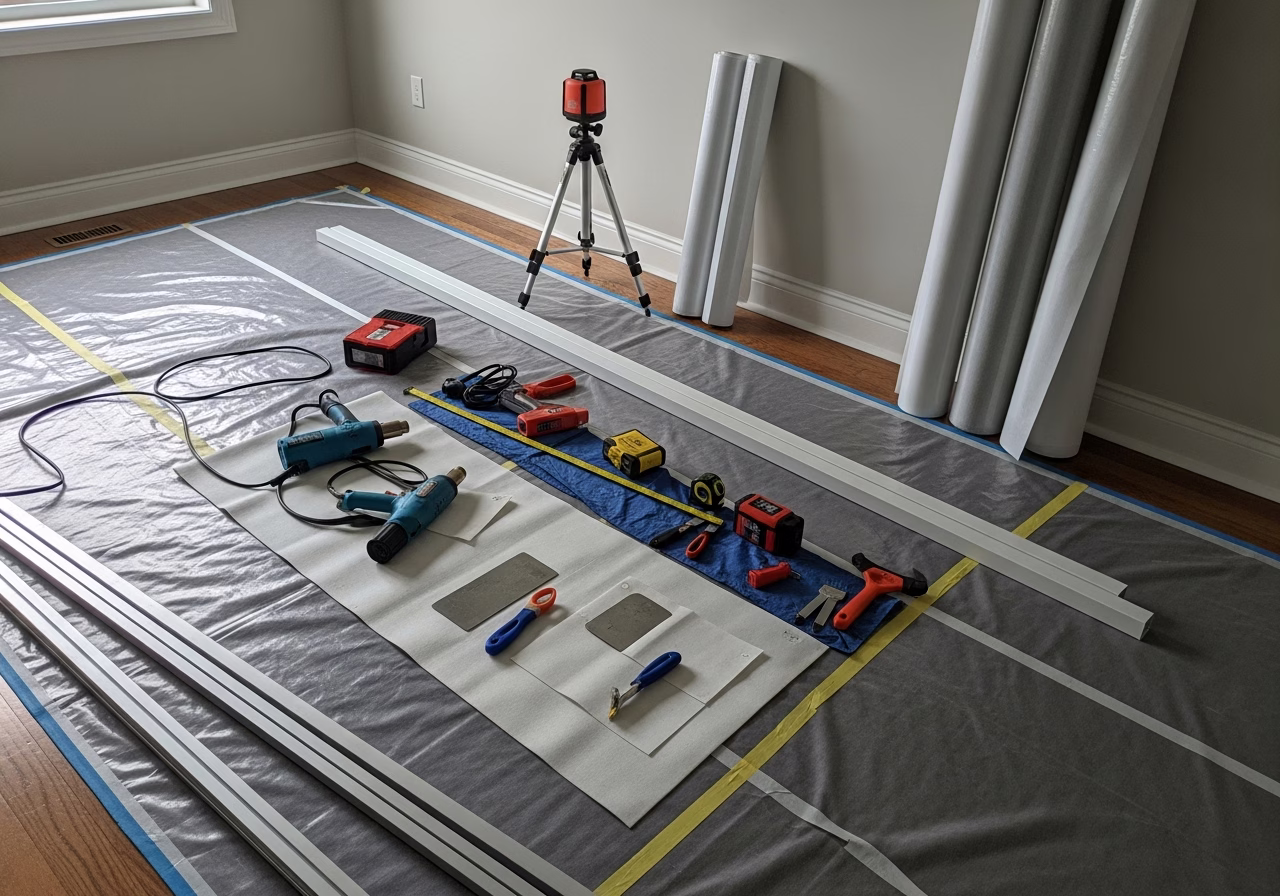

Install Method for 3D

The install is more complex than flat or multi-level:

Stage 1: Design and shop drawings. The 3D geometry is documented in CAD with all dimensions, profile bend radii, and membrane cut patterns. Stage 2: Profile fabrication. Custom or flexible profiles are bent on a jig (in-shop) or supplied pre-bent. Mounting brackets are fabricated for attaching the profile to the structural ceiling. Stage 3: Sub-frame for dome / cone. A wooden or metal sub-frame is built to support the dome geometry. The dome rises from a flat plane, so the sub-frame defines the dome's perimeter and apex height. Stage 4: Profile installation. Profiles are mounted to the sub-frame following the design geometry. Stage 5: Pre-install lighting. For backlit domes, LED panels or strips are installed inside the dome cavity, wired to controllers. Stage 6: Membrane fabrication. PVC film is custom-cut at the factory based on shop drawings. The harpoon edge is welded to follow the curve. Stage 7: Heat-install the membrane. Room is heated to 50-70 degrees Celsius. The membrane is unfolded, lifted, and hooked into the curved profile progressively. Domes are tricky - the apex is hooked first, then radiating outward. Local heat applied to encourage drape into curves. Stage 8: Trim and lighting commissioning.

Total install time:

• Mid-tier 1-1.5 m dome: 1.5-2 days.
• Premium 2-3 m dome: 2-3 days.
• Wave ceiling 4 m × 4 m: 2-3 days.
• Custom signature project: 4-7 days.

Ceiling Height Considerations

3D shapes eat dramatic amounts of height:

• Dome 1 m diameter, 30 cm rise: minimal impact at perimeter, 30 cm reduced clearance under the dome.
• Dome 2 m diameter, 50 cm rise: 50 cm reduced clearance.
• Wave 4 m × 4 m, ±25 cm variation: 25 cm at the lowest crest.
• Cone apex 60 cm: 60 cm reduced clearance at the apex.

For 8-foot Toronto condos (2.44 m), 3D shapes are technically possible but the dome rise is severe. Recommended for 9+ foot ceilings.

For 10+ foot ceilings (luxury detached homes, top-floor condos, commercial spaces), 3D shapes work beautifully.

Backlit 3D: The Killer Combination

The most striking 3D installations combine sculptural geometry with full backlighting:

Backlit dome: LED panels inside the dome cavity light the translucent membrane from above, creating a glowing dome effect. The dome reads as a soft sun or moon shape. Best in dining rooms, foyers, master bedrooms. Backlit wave: LED strips embedded along the wave crests with the membrane being translucent or perforated. The wave glows along its peaks, creating a flowing-light effect. Best in restaurants, cafes, modern condo living rooms. Backlit false drum chandelier: LED ring or panel inside the drum geometry. The drum glows like an actual drum chandelier without the fixture.

Backlit 3D adds 30-80% to the cost of the base 3D installation but transforms the design from sculptural to luminous. For premium projects, almost always specified.

See our LED backlit stretch ceiling pillar guide for full backlit detail.

Where 3D Works in Toronto

Master bedrooms: central dome over the bed creates an intimate sculptural feature. Russian-Canadian luxury homes in Thornhill, Vaughan, North York frequently specify this. Dining rooms: dome or cone over the dining table, often paired with a chandelier hung from the apex. Foyers and entries: signature dome to greet visitors. Foyer is typically 9-12 feet, perfect for dome geometry. Open-plan living: wave ceiling defines functional zones in a large open space. Restaurants and cafes: wave or organic forms add atmosphere. Bay Street, King West, Yorkville restaurants use these for designer impact. Commercial showpiece spaces: hotel lobbies, retail flagships, corporate reception.

Where 3D Does Not Work

• 8-foot ceilings (height loss too severe).
• Heritage homes with original plaster ornament (3D reads as competing design language).
• Strict modern minimalist (3D is rarely truly minimalist).
• Budget under $10,000 (the premium dominates).
• DIY-leaning homeowners (3D is exclusively professional).

How RenoHouse Coordinates 3D

3D stretch ceiling is the most specialized installation type we coordinate. Our process:

• 1. Designer or RenoHouse PM consultation with 3D rendering of proposed shape.
• 2. Brand specification (Barrisol, Clipso, or premium MSD with flexible profile).
• 3. Shop drawings detailing the geometry.
• 4. Pre-fabrication of profiles and membrane (4-8 weeks lead time for premium brands).
• 5. Sub-frame construction by our partner installer with carpentry support.
• 6. Heat install by certified PVC heat-gun installer.
• 7. Lighting commissioning if backlit.
• 8. 10-year RenoHouse-backed warranty layered over the manufacturer warranty.

Request a 3D stretch ceiling design consultation for any Toronto luxury project.

FAQ

Can I see a 3D stretch ceiling before committing? Yes - we maintain a portfolio of completed Toronto projects available for in-person showroom viewing. Our partner installer firms also have showrooms in Vaughan and North York. How long does a 3D ceiling last compared to flat? Same lifespan if installed correctly. The membrane stress at curves is higher, so brand and thickness matter more. Can the 3D be removed if I sell? Yes - the membrane peels out in 15 minutes; the sub-frame is removed in 1-2 hours. The room returns to flat ceiling state. What if I want to repair a 3D ceiling? Replacement of a curved panel requires re-fabrication of the membrane to match the geometry - lead time 4-8 weeks. Repair is more involved than flat. Is 3D a good investment for resale? Polarizing - dramatic positive in Russian-Canadian neighbourhoods and high-end designer markets, neutral or negative in conservative Anglo-Canadian markets. Specify based on your buyer pool.
