# Composite Deck Railing Systems Comparison Toronto 2026

The railing on a composite deck typically costs 20–35% of the total project budget — and yet most homeowners spend less than 30 minutes evaluating options. Wrong call here means an aesthetic mismatch (chunky composite-clad railing on a sleek modern deck) or a code-compliance issue (glass panels installed without proper structural anchoring) or a 10-year maintenance liability (cable railing tension drift).

This is the comparison of every railing system available for composite decks in Toronto, with 2026 pricing, code requirements, and visual analysis. For the broader composite guide, see [composite decking Toronto 2026](/blog/composite-decking-toronto-2026). For the underlying deck cost math, see [composite decking cost per sq ft Toronto](/blog/composite-decking-cost-per-sqft-toronto).

Toronto Building Code Requirements (Always Required)

Before shopping railing, know what code requires:

• Guard height:

- 36" minimum for decks 600mm–1.8m above adjacent grade.

- 42" minimum for decks above 1.8m above grade.

• Picket spacing: must reject a 100mm sphere (typically 4" on center max).
• Top rail load resistance: 100 lb point load applied anywhere along the run, in any direction.
• Stair handrail: required for 3+ risers, between 34" and 38" measured from nosing, must be graspable (1.25"–1.5" diameter).
• Stair guard: 42" minimum on stairs that are 600mm above grade at any point.
• Anchorage: post-to-deck connections must transfer the 100 lb load through the deck structure without pulling out.

The Five Railing System Options

1. Aluminum Picket Railing

Powder-coated aluminum posts, balusters, and top/bottom rails. The Toronto default.

Brands in GTA: Westbury (TexTrim/Stafford), Fortress (Pure View, FE26), Regal Ideas, Peak Aluminum, KeyLink. Cost: $90–$140 per linear foot installed. Visual: clean, modern, low-profile balusters (typically 1/2" or 5/8" aluminum). Black is the dominant color; bronze and white available. Pros:

• Lowest cost per linear foot.
• Lightest weight.
• Never paint or refinish — powder-coat lasts 30+ years.
• Easiest install for contractors.
• Strong baluster spacing options to comply with code.
• Compatible with any composite deck brand.
• Wide availability — Home Depot, specialty yards.

Cons:

• Aesthetic less premium than composite-clad.
• Powder-coat scratches show silver underneath.
• Some homeowners feel aluminum reads "commercial" or "industrial."

Best for: budget-conscious to mid-range installs, modern aesthetic, families with kids (no pinch points or sharp edges in well-designed systems).

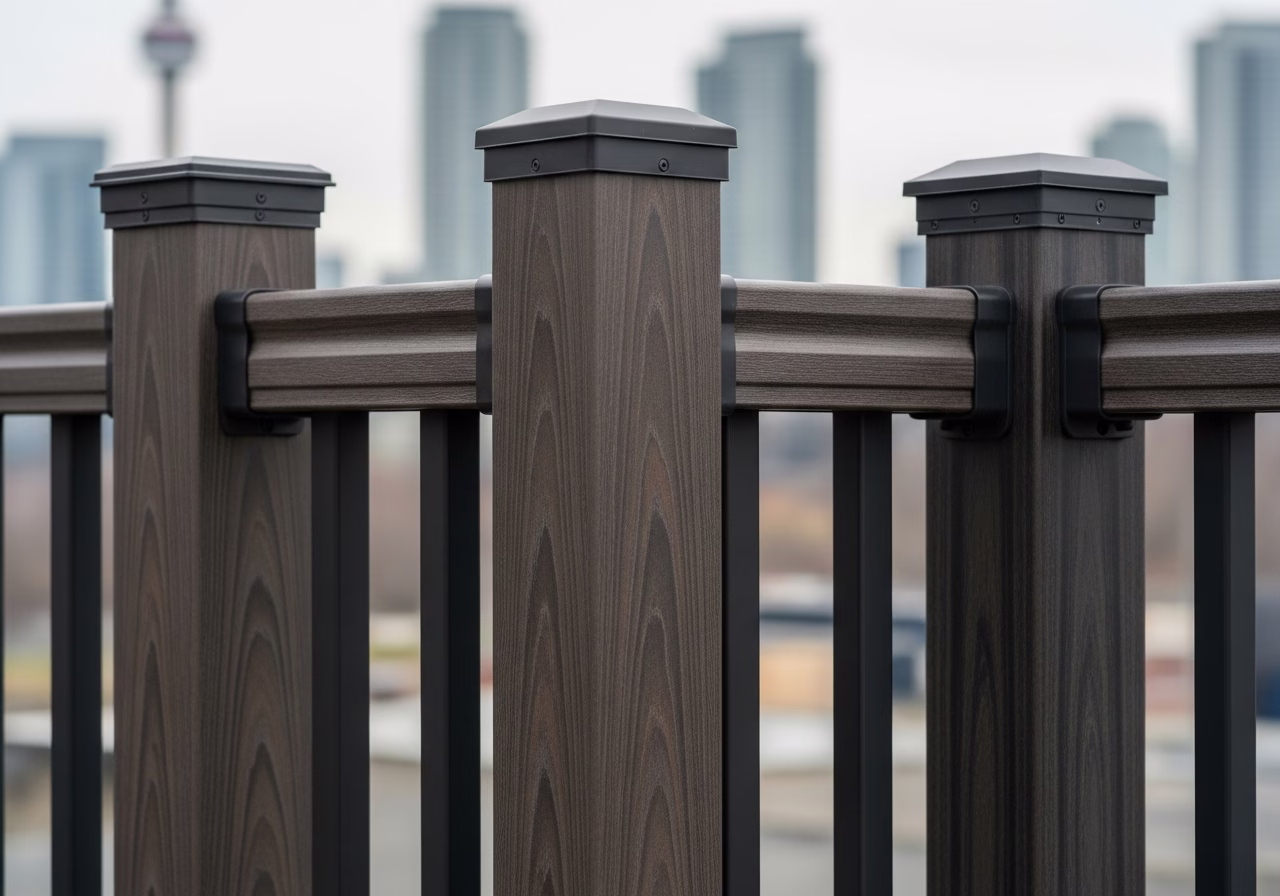

2. Composite-Clad Post + Composite Top Rail + Aluminum Balusters

Aluminum or PT structural post wrapped in composite sleeve (matching deck color), composite top rail (often grooved to receive aluminum baluster pickets), aluminum balusters between top and bottom rails.

Brands in GTA: Trex Signature/Transcend Railing, TimberTech RadianceRail/Impression Rail Express, AZEK Premier Rail, Fiberon CityScape, Symmetry. Cost: $130–$200 per linear foot installed. Visual: premium look. Posts and rail blend with deck. Aluminum pickets stay slim. The "composite deck with matching railing" aesthetic that signals premium build. Pros:

• Visual cohesion with deck surface.
• Posts and rails match deck warranty (25–50 years).
• Composite cap on top rail looks like extension of deck.
• No painting required.
• Strong resale signal on premium homes.

Cons:

• Significant cost premium ($40–$60/LF over aluminum picket).
• Heavier — requires beefier post anchoring.
• Composite-clad post is wider than aluminum (typically 4"–6" vs 2.5") — visually chunkier.
• Ties color choice to railing and deck (limited flexibility if you want contrasting railing).

Best for: premium installs, wider decks where chunky posts aren't a problem, homeowners who want fully cohesive deck-and-rail aesthetic.

3. Composite Top Rail + Composite Balusters

All-composite (no aluminum). Composite top rail and composite balusters or panels.

Brands: Trex Reveal (composite balusters), TimberTech FloodLight Rail (rare), Fiberon Symmetry. Cost: $160–$240 per linear foot installed. Visual: chunkiest railing visual — composite balusters are typically 1.5"–2" wide. Reads premium but visually heavier. Pros:

• Fully cohesive composite aesthetic.
• No aluminum to scratch or fade.
• Matches premium deck warranty fully.

Cons:

• Heaviest visual.
• Most expensive (highest per-LF cost).
• Heaviest weight — substantial structure required.
• Composite balusters can flex slightly (less rigid than aluminum).

Best for: ultra-premium installs ($45K+ deck), specifier-driven projects.

4. Glass Panel Railing

Tempered glass panels (typically 12mm or 1/2") clamped between aluminum or stainless posts and bottom shoe rail.

Brands in GTA: Postmaster (Toronto local fabricator), Trex Signature Glass, Fortress Pure View Glass. Cost: $200–$350 per linear foot installed. Visual: virtually transparent. Maximum view preservation. Modern luxury aesthetic. Pros:

• Best view preservation (often the deciding factor — pool, lake, ravine views).
• Modern luxury signal.
• Zero spacing/picket issue.
• Tempered glass is extremely durable (passes 100 lb load at glass center).

Cons:

• Highest cost per LF.
• Requires precise post anchoring (glass alignment is unforgiving).
• Smudges, fingerprints, and dog nose-prints visible.
• Cleaning required monthly minimum.
• Surface scratches do show.
• Bird strikes — birds don't see glass; consider decals.
• Repair cost if a panel damages: $400–$900 to replace one panel.

Best for: view-critical decks (lakefront, ravine, pool), modern luxury aesthetic, homeowners willing to clean.

5. Cable Railing

Stainless steel cable strands tensioned horizontally between aluminum or stainless posts. Typically 10–13 cables per railing run (4" max gap = 100mm sphere code).

Brands in GTA: Feeney CableRail, Atlantis Rail, KeyLink Cable, RDI Cable Connect. Cost: $180–$280 per linear foot installed. Visual: industrial-modern. Low visual obstruction, "wire" aesthetic. View preservation second only to glass. Pros:

• Strong view preservation.
• Industrial-modern aesthetic, distinctive.
• No paint or refinish.
• Wide post spacing possible.

Cons:

• Cable tension drifts — requires retensioning every 2–3 years (10–30 minutes per railing run).
• Cables can sag visibly if not maintained.
• Stainless cable is sharp at terminations — install precision matters.
• Code compliance check: must reject 100mm sphere even when cables are flexed.
• Specifier-driven; few Toronto contractors install regularly.
• Higher cost than aluminum picket but generally less than glass.
• Pet-friendly issue: dogs can sometimes wedge between cables and panic.

Best for: modern-industrial aesthetic, semi-rural lots with views, homeowners who don't mind the retensioning maintenance.

Cost Per Linear Foot Comparison Table (2026 Toronto Installed)

For a 35-LF railing run on a typical 300 sq ft Toronto deck:

• Aluminum picket: $3,150–$4,900.
• Composite-clad: $4,550–$7,000.
• All-composite: $5,600–$8,400.
• Glass panel: $7,000–$12,250.
• Cable rail: $6,300–$9,800.

Toronto Climate Performance

Aluminum Picket

Best winter performance. No expansion/contraction issues. Powder-coat lasts 30+ years untouched. Salt-resistant. Score: 10/10.

Composite-Clad

Excellent. Composite cladding doesn't rust, fade minimally. Composite top rail has same freeze-thaw resilience as the deck surface. Score: 9/10 (slight concern with mounting hardware corrosion if not stainless).

All-Composite

Excellent. Same composite material; same warranty. Score: 9/10.

Glass Panel

Excellent. Tempered glass shrugs off freeze-thaw. Aluminum frame requires stainless hardware. Score: 9/10.

Cable Railing

Good but tension management. Stainless cable doesn't corrode but freeze-thaw cycle stresses fittings; retensioning required. Score: 7/10.

Visual Decision Guide by Aesthetic

Modern / Contemporary Home (Charcoal Trim, Flat Roof, Large Windows)

• Best: Glass panel OR aluminum picket in black.
• Avoid: All-composite (too chunky for modern).

Traditional / Heritage Home (Brick, Cedar Shingle, Pitched Roof)

• Best: Composite-clad + aluminum balusters OR aluminum picket.
• Avoid: Glass panel (too modern), cable rail (too industrial).

Modern Farmhouse (Hardie Plank, Black Windows, Mixed Materials)

• Best: Cable rail OR aluminum picket in black.
• Avoid: Composite-clad (too cohesive, kills the visual tension).

Lake/Pool/Ravine View Property

• Best: Glass panel (preserves view) OR cable rail (semi-preserves).
• Avoid: Composite-clad (blocks view).

Family with Young Kids

• Best: Aluminum picket (no pinch points if 3" or less spacing) OR composite-clad with aluminum balusters.
• Avoid: Cable rail (kids climb), glass panel (smudges constantly).

Pet Owners (Dogs)

• Best: Aluminum picket OR composite-clad. 4" picket spacing is dog-safe.
• Avoid: Cable rail (some dogs wedge), low-baluster glass without bottom kick rail.

Hardware and Anchoring (Critical for Code)

Regardless of railing system, the post-to-deck connection must transfer 100 lb point load:

Surface-Mount Posts (Most Common)

• Through-bolt baseplate to deck surface.
• Beneath the deck: load-rated 4x4 PT mounting block fastened to joist with 1/2" lag bolts or carriage bolts.
• Stainless or hot-dipped galvanized hardware.

Side-Mount Posts (Premium)

• Posts fastened to face of rim joist via through-bolts.
• Cleaner visual (no surface plate).
• Higher labor cost (+$15–$25/LF).

Required Hardware

• Stainless 305 minimum, 316 within 1 km of Lake Ontario.
• 5/8" through-bolts for top connection.
• 1/2" lag bolts for joist connection.
• Locking washers on all critical fasteners.

A reputable contractor specifies hardware in writing. If your contract says "post brackets" without specifying material or fastener size, push for clarity.

Stair Handrail Compliance

Often overlooked — stair handrail must be:

• Between 34" and 38" measured from nosing.
• Graspable diameter (1.25"–1.5" round, or graspable equivalent).
• Continuous along full stair run.
• Returned at top and bottom (no protruding ends in walkway).

Aluminum picket systems include matching stair handrail. Composite-clad systems may require a separate aluminum graspable handrail run on the inside of the composite-clad rail (composite top rails are often too wide to grip).

Lighting Integration

Several railing systems offer integrated lighting:

• Trex/TimberTech post cap LED lights: $40–$120 each.
• Under-rail LED strip: continuous bottom-of-rail glow. $30–$60/LF.
• Glass panel edge-lit: specialty channel-mounted LED in glass clamp shoe. $80–$140/LF.

If lighting matters, plan during build (wiring through joists). Retrofit lighting on existing railing is awkward and typically loses 30% of clean install aesthetic.

Maintenance by System

How to Choose

Step 1: Set Budget Allocation

Railing is typically 20–35% of total deck cost. For a $25K deck, expect $5K–$8.5K railing budget.

Step 2: Filter by Aesthetic

Modern home with view: glass or cable. Traditional home: aluminum or composite-clad. Family-friendly modern: aluminum picket.

Step 3: Filter by Code/Function

Stair handrail compliant? Pet-safe? View-preserving (if relevant)?

Step 4: Test Samples

Get physical samples or visit a showroom (Westbury, Trex, Fortress all have GTA showrooms or partner contractors with display panels).

Step 5: Confirm Hardware Spec

Stainless grade specified in contract. Post anchoring detailed.

Real Toronto Examples

Oakville, Bronte, 2024 install: 50 LF railing on a 380 sq ft Trex Transcend deck. Composite-clad rail with aluminum balusters in matching Lava Rock. Total: $7,800. Premium fully-coordinated look on a $42K total project. Toronto Beaches, 2024 install: 28 LF railing on 220 sq ft TimberTech AZEK deck. Glass panel for lake view preservation. Total: $7,400. Customer cited view as primary deck use; railing decision driven by glass. Mississauga, Streetsville, 2025 install: 40 LF railing on 320 sq ft Fiberon Sanctuary deck. Aluminum picket black (Westbury Tuscany). Total: $4,700. Mid-budget project; aluminum picket maximized funds for wider deck. Markham, Cathedraltown, 2024 install: 60 LF railing on 480 sq ft AZEK Vintage deck. Cable rail (Feeney CableRail). Total: $14,400. Modern home with ravine backing; cable preserves view, fits aesthetic.

For composite deck installation step-by-step including railing post anchoring, see [how to install composite decking Toronto](/blog/how-to-install-composite-decking-toronto). For warranty implications, see [composite decking warranty comparison 2026](/blog/composite-decking-warranty-comparison-2026).

---
