# Home Gym Electrical Requirements: 240V for Treadmill, Tonal, Peloton

Quick answer. Electrical is where amateur home-gym buildouts most often fail. A single 120V outlet shared between a treadmill, Tonal, and a Peloton trips constantly, runs equipment under-spec, and sometimes damages motors. This guide explains exactly what circuits each piece of connected fitness equipment needs, when 240V is required vs.

Electrical is where amateur home-gym buildouts most often fail. A single 120V outlet shared between a treadmill, Tonal, and a Peloton trips constantly, runs equipment under-spec, and sometimes damages motors. This guide explains exactly what circuits each piece of connected fitness equipment needs, when 240V is required vs. nice-to-have, panel upgrade triggers, and ESA permit/inspection requirements in Toronto. For the broader buildout context, start with our Basement Home Gym Toronto 2026 Guide.

The Quick Answer

For a serious 2026 home gym in Toronto, plan for:

• 2–3 × 240V/20A circuits (treadmill, Tonal, future cardio)
• 4–6 × 120V/20A general circuits (lighting, AV, fans, accessories)
• 1 × dedicated lighting circuit (separate from outlets)
• 1 × low-voltage AV/data home-run (Wi-Fi mesh, AV control)

Total connected load: ~70–100 amps when everything's running. This is where the panel upgrade question becomes real.

Equipment-Specific Requirements

Tonal: 240V/20A Hardwired

Tonal officially specs as 240V/20A dedicated circuit, hardwired. The unit is mounted to studs and its power cable goes directly into a junction box. There's no plug — once installed, you can't move it.

Implication: framing must include backing for the Tonal mount, and a 240V/20A circuit must terminate in the wall behind the Tonal location *before* drywall.

We pre-coordinate with clients during the framing step to confirm Tonal location and bring power exactly where it needs to be.

Peloton Bike: 120V/15A Plug-In

Standard 120V/15A residential outlet. Any properly grounded outlet on its own circuit works.

Bike+ same — 120V plug-in.

Peloton Tread+: 240V/20A

The Tread+ (the larger of the two) requires 240V/20A. Newer models (2023+) ship with the 240V plug. Older units (the original 2018-launch Tread) were 120V but are rare in 2026 buildouts.

Other Treadmills 3HP+ (NordicTrack Commercial, Sole TT8, Bowflex T22)

Most commercial-grade residential treadmills 3.0+ HP recommend 240V/20A for consistent performance. They'll run on 120V but the manufacturer warns of premature motor wear and inconsistent speed under load (especially during incline + heavy user).

If you're spending $3K+ on a treadmill, run a 240V circuit.

Lululemon Studio Mirror (formerly Mirror)

120V/15A plug-in. Mounted to studs (or freestanding). No special electrical.

Tempo Studio

120V/15A plug-in. Floor-standing. No special electrical.

FightCamp

120V/15A plug-in. No special electrical.

Concept2 RowErg

Battery-powered display. No outlet required for the rower itself. Add a 120V outlet nearby for fan and phone charging.

Echelon Stride / Reflect / Bikes

120V/15A plug-in for most consumer models. Commercial Echelon EX-8s+ requires 240V.

Power Rack with Pulley System (Rogue Monster Lite, Rep PR-5000 with Iso Arms)

No power required for the rack itself. But if you add electronic accessories (Velocity Based Training systems, Beast/PUSH band charging stations, plate-loaded electromagnetic resistance hybrids), plan for 1–2 × 120V outlets near the rack.

Sauna (if building a wellness suite)

• Infrared cabin: 120V/20A or 240V/30A depending on size
• Finnish electric heater (4.5–9 kW): 240V/30–40A

Detail in Home Gym + Sauna + Cold Plunge: Ultimate Wellness Suite and our companion basement sauna installation service page.

Cold Plunge

Chiller is typically 120V/15A or 120V/20A. High-end commercial-grade units (Plunge Pro, Renu Therapy XL) may be 240V/20A.

HVAC Mini-Split (if installed)

240V/15A or 240V/20A depending on BTU. Detail in Home Gym Ventilation: HVAC for 600W+ Heat Output.

Total Electrical Load Calculation

Worked example for a fully equipped premium gym:

This is roughly 80 amps of simultaneous load. On a 100A panel with everything else (HVAC, water heater, lighting throughout the house), this is over the limit.

This is why most premium gym buildouts in older Toronto homes require a 200A panel upgrade.

When You Need a Panel Upgrade

Triggers for a 100A → 200A upgrade in a gym buildout:

• 1. Two or more new 240V circuits in a 100A home (almost always)
• 2. EV charger already on the panel + adding gym 240V
• 3. Existing electric heat or hot water + multiple gym 240V
• 4. Wellness suite with sauna 240V/40A + plunge + gym

A panel upgrade in Toronto runs $2,500–$4,500 including ESA permit, materials, labour, and final inspection. It's a one-day to two-day job.

We always do load calculations at the consultation stage and advise honestly on whether a panel upgrade is needed.

Wiring Sizing and Type

For 240V/20A circuits to gym equipment, we run:

• #12 AWG NMD-90 (Romex) — most common, behind drywall

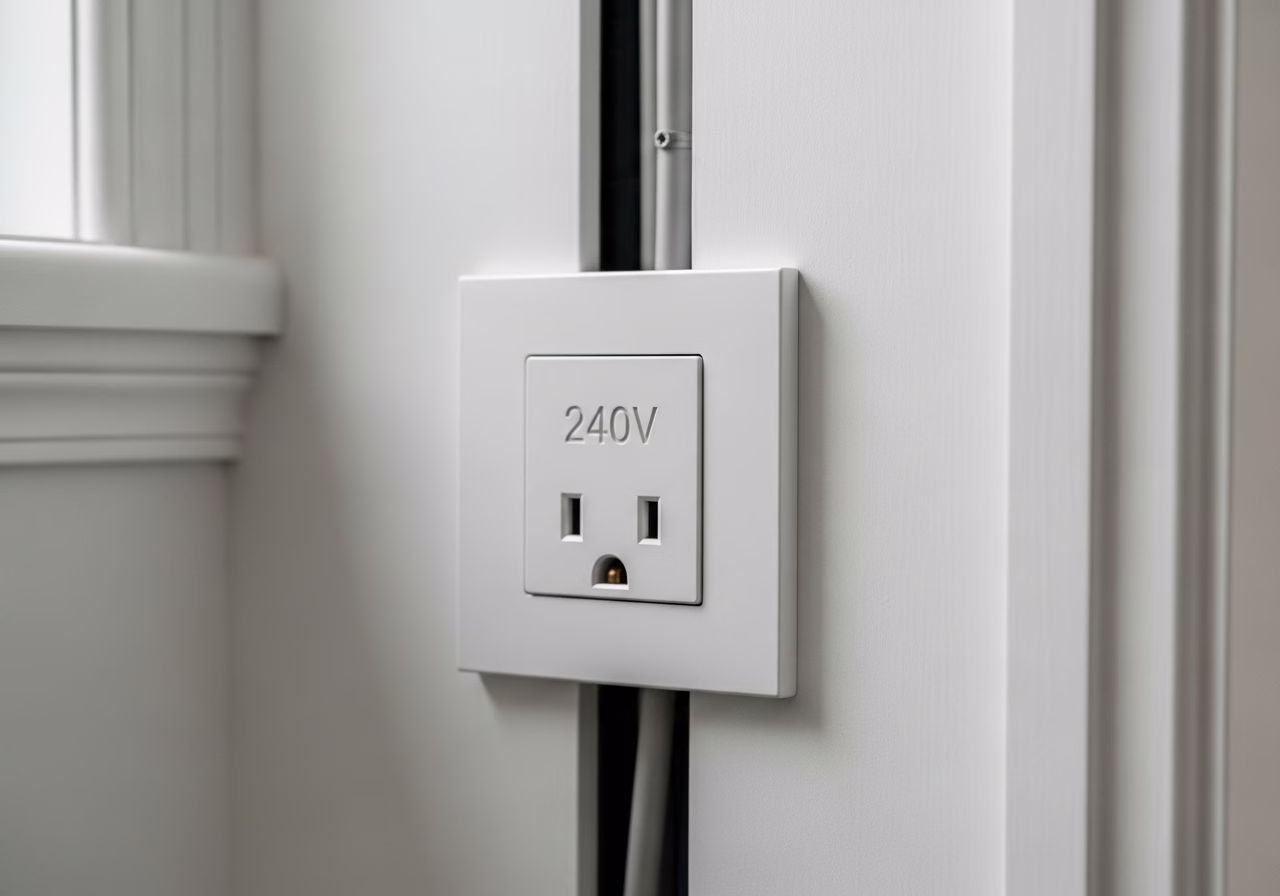

• Junction box at termination point with 4-square cover (for hardwired equipment) or 240V outlet receptacle (for plug-in)

For longer runs (>50 ft from panel) we sometimes upsize to #10 AWG to compensate for voltage drop on heavy continuous loads.

For 120V/20A general circuits we use #12 AWG NMD-90 throughout.

ESA Permits and Inspections

In Ontario, all new circuits require Electrical Safety Authority (ESA) permit and inspection. There's no exception for "small" residential additions.

Process:

• 1. We pull the ESA "Notification of Work" before starting (~$88 for the smallest scope; $150–$300 typical for a full gym buildout)
• 2. Rough-in inspection after wiring, before drywall
• 3. Final inspection after fixtures and devices are in
• 4. ESA issues a Certificate of Inspection — this is what your home insurance and future buyers want to see

Unpermitted electrical is the single most common reason a renovation gets discounted on resale. We do not skip ESA permits.

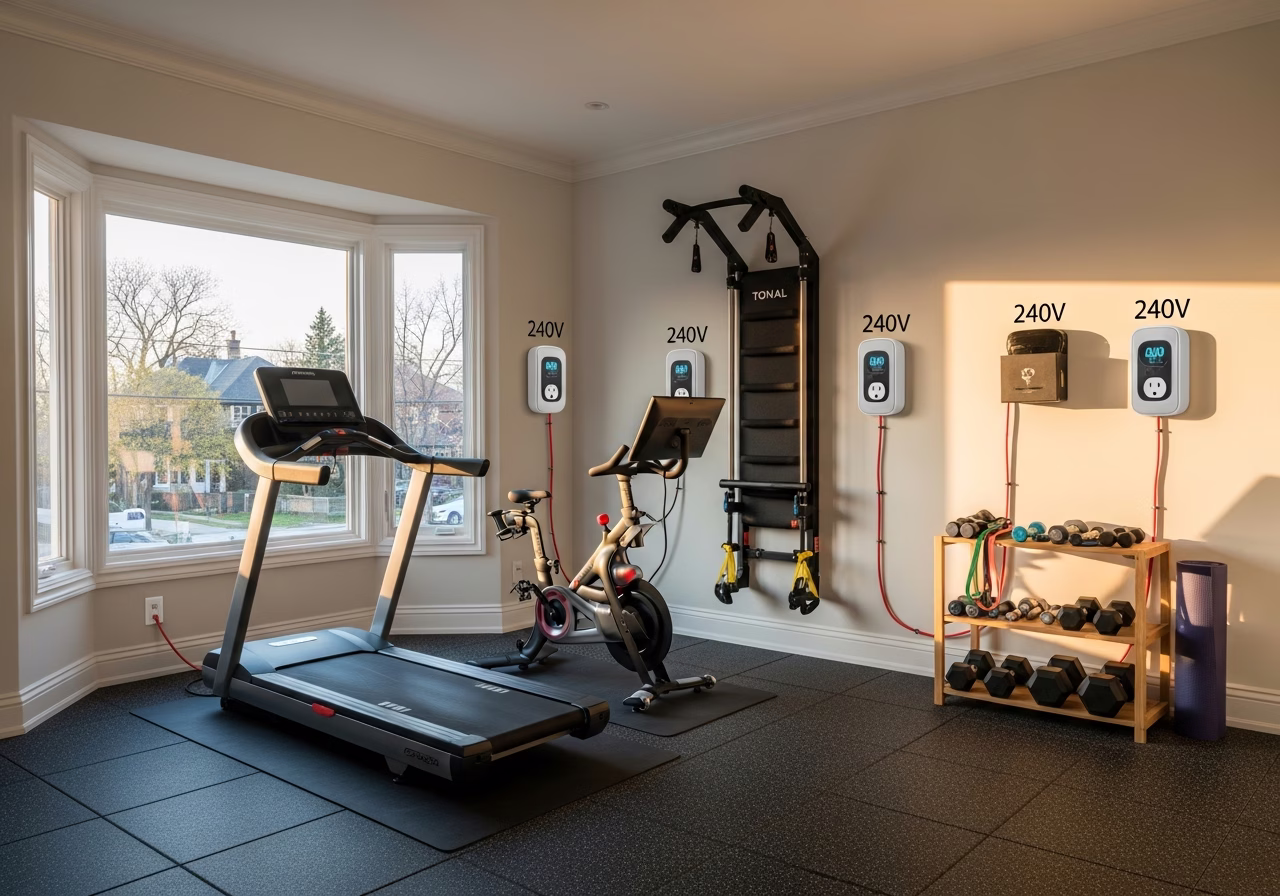

Outlet Layout Best Practices

Standard 2026 layout for a 350 sq ft gym:

• 1 × 240V/20A behind Tonal location
• 1 × 240V/20A in treadmill zone (positioned 12" off the floor, behind treadmill base)
• 1 × 120V duplex on each wall (4 walls = 4 outlets minimum) at standard 12" off floor
• 1 × 120V duplex 4 ft off the floor for AV equipment / fan
• 1 × 120V duplex in ceiling for ceiling fan or AV speakers
• 1 × dedicated lighting circuit
• 1 × low-voltage routing for AV/data

Total: 6–8 outlets for general use + 2–3 dedicated 240V.

Don't skimp here. An extra 120V/20A outlet costs $80–$150 to add at rough-in stage; adding it after drywall is closed costs $300–$500 with patching.

Common Electrical Mistakes

• 1. Single 120V circuit shared by treadmill + multiple devices — trips under load, damages motor
• 2. 120V outlet for Tonal — Tonal won't even install (240V required)
• 3. No backing for Tonal mount — drywall pulls out under Tonal weight
• 4. 240V circuit too short — voltage drop on long runs causes equipment errors
• 5. No ESA permit — discovered at home sale, costs you the recovery
• 6. Old aluminum wiring left in place with new gym additions tied in — fire risk in older homes
• 7. DIY wiring on hardwired equipment — voids equipment warranty AND home insurance

When You Need a Subpanel

For wellness suites or premium gyms with multiple 240V circuits, sometimes we recommend a subpanel in the gym room rather than running everything back to the main panel. Benefits:

• Shorter circuit runs (less voltage drop)
• Easier troubleshooting (gym breakers separate from main)
• Future expansion easier
• Cleaner main panel

Subpanel install: $1,200–$2,500 additional, tied into either the existing 100A panel or post-upgrade 200A.

Cost Breakdown for Standard Gym Electrical

For a typical 350 sq ft mid-tier gym in 2026 Toronto:

Add $2,500–$4,500 if a panel upgrade is required.

Smart-Home Integration (Premium Tier)

For premium buildouts we routinely integrate:

• Lutron Caseta for lighting scenes
• Smart 240V relay for sauna pre-heat scheduling
• Energy monitoring at the panel (Sense, Emporia)
• Wi-Fi smart outlets for connected fitness equipment power management

Cost: $1,500–$4,000 depending on scope.

Working with Your Existing Home

Older Toronto homes have specific electrical patterns:

• Pre-1950 knob-and-tube — must be replaced before adding any modern circuits. Full rewire of one floor is $5K–$15K.
• 1950s–1970s aluminum branch wiring — needs CO/ALR receptacles or pigtailing. Insurance often requires remediation.
• Pre-1980 100A panel — almost always needs upgrade for serious gym buildout.
• 1990s+ 200A panel — usually fine, just adding circuits.

We assess your home's electrical at the consultation stage and quote upgrades transparently.

For the broader buildout framework, see our Basement Home Gym Toronto 2026 Guide.

---

Planning your gym electrical? RenoHouse's licensed electricians handle ESA permits, load calculations, panel upgrades, and full installation. Book a free assessment on our basement home gym buildout service page.
