# Home Gym Mistakes: 10 Common Buildout Failures

Quick answer. After hundreds of home gym projects (and dozens of remediation jobs on other contractors' work), the same 10 mistakes show up repeatedly in Toronto basement gym buildouts. Avoiding them is the difference between a $30K project that's used 5x/week for 15 years and a $30K project that's a $40K total cost two years later.

After hundreds of home gym projects (and dozens of remediation jobs on other contractors' work), the same 10 mistakes show up repeatedly in Toronto basement gym buildouts. Avoiding them is the difference between a $30K project that's used 5x/week for 15 years and a $30K project that's a $40K total cost two years later. This guide catalogues the top 10 with realistic remediation costs. For the broader buildout context, see our Basement Home Gym Toronto 2026 Guide.

Mistake 1: Foam Puzzle Mat Flooring Under Real Equipment

The mistake: Choosing 12–25mm EVA foam puzzle mats because they're cheap ($1.20–$1.70/sq ft) and easy to install. The failure mode: Foam compresses permanently under rack legs and equipment within 6–12 months. Rack stance becomes wobbly. Tears under barbell loading. Off-gases for weeks in sealed basement. Reads "kids playroom" not "gym." Real cost: Foam costs $1,500 for 350 sq ft. Replacement after 12 months adds $4,500–$8,500 in proper rubber + labour. Net cost vs. doing it right the first time: 30–50% more, plus 12 months of suboptimal use. Right answer: 8–12mm interlocking rubber tile minimum, or 12mm rubber roll. Detail in Home Gym Flooring: Rubber Tile vs Roll vs Mat Toronto.

Mistake 2: Single 120V Outlet Shared by All Cardio + Connected Fitness

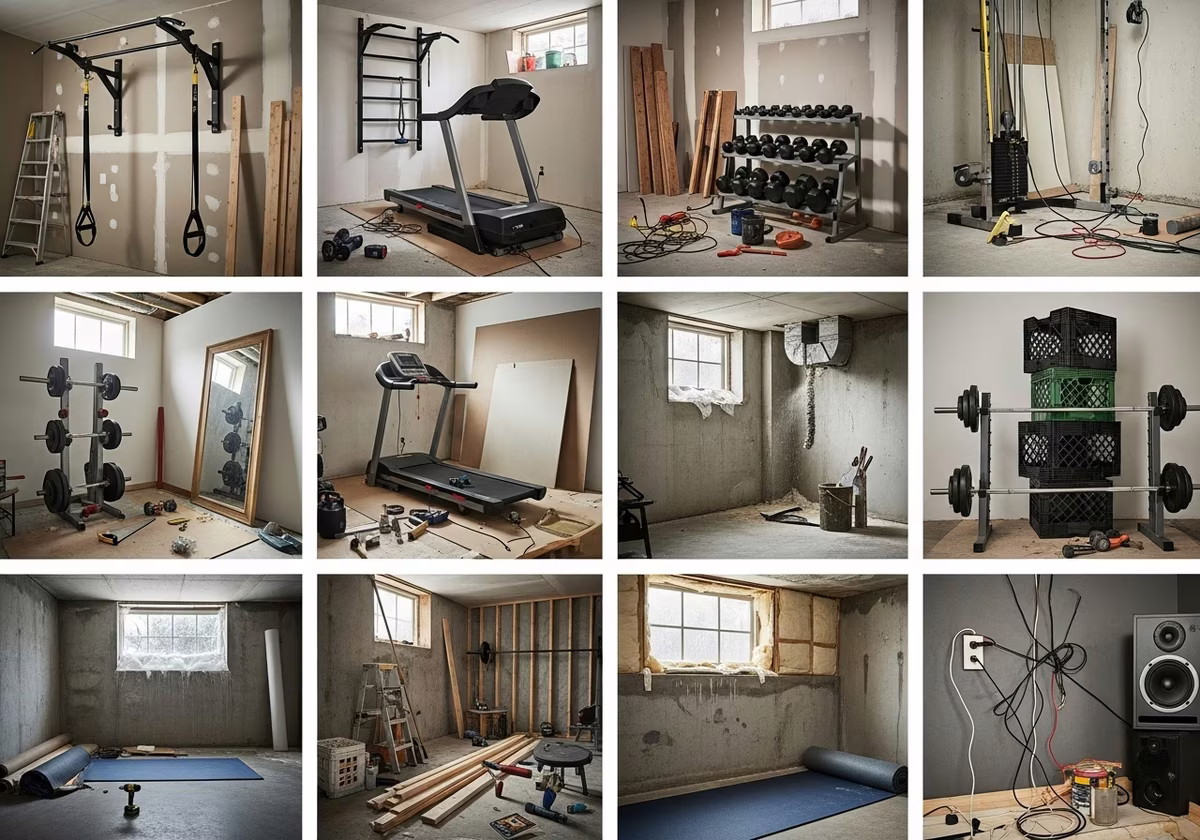

Home Gym Mistakes — tools and materials staged in a Greater Toronto Area home

The mistake: Using existing 120V outlet (typically a single 15A circuit shared with general basement load) for treadmill + Peloton + Mirror + Tonal. The failure mode: Tonal won't even install (240V required). Commercial-grade treadmills run sluggish, motor wears prematurely. Breaker trips during Peloton + treadmill simultaneous use. Mirror lags during streaming. Real cost: Buyer realizes 6 months in. Retrofitting 240V circuits and adding general 120V circuits requires drywall patching: $3,500–$6,500. Right answer: 2 × 240V/20A + 4 × 120V/20A circuits at rough-in. Detail in Home Gym Electrical Requirements: 240V for Treadmill, Tonal, Peloton.

Mistake 3: No HVAC Plan

The mistake: Building a sealed gym room with one HVAC return and no exhaust fan, no mini-split, no ventilation strategy. The failure mode: Gym becomes unusable in summer (88°F + 70% humidity). Workout adherence drops. Equipment ages prematurely from humidity. Basement air quality degrades. Real cost: $2,500 saved upfront on HVAC. Retrofit mini-split costs $5,500–$8,500 because exterior wall access and refrigerant routing are harder post-construction. Net cost: 80–120% more. Right answer: Standard tier — supplementary supply/return + 200 cfm exhaust fan ($1,500–$3,500). Premium tier — mini-split. Detail in Home Gym Ventilation: HVAC for 600W+ Heat Output.

Mistake 4: Wrong Ceiling Height (Building in 7'2" Basement)

Home Gym Mistakes — close-up of professional workmanship in a Toronto-area home

The mistake: Building a gym in a basement with 7'2" ceiling height because "I'm not that tall." The failure mode: Overhead pressing impossible. Kettlebell swings strike ceiling. Jump rope impossible. Pull-ups (high bar) impossible. Olympic lifts dangerous. Tall family members can't use space. Real cost: Discovered in use. Underpinning costs $30K–$80K to rectify. Most homeowners just live with the limitation, which permanently reduces use and resale value. Right answer: Honest measurement at consultation stage. Below 7'6" — don't build a real gym; build a yoga/cardio-only space. Underpin first if serious about lifting. Detail in Basement Home Gym Toronto 2026 Guide.

Mistake 5: Mirror Wall Without Proper Backing

The mistake: Installing a mirror wall with mirror mastic alone, no studs in the right places, no Z-clip safety brackets. The failure mode: Mirror sags within 1–2 years (basement humidity weakens mastic bond). Eventually falls. Code-violating: any wall mirror over 4 sq ft requires Z-clip safety mounting in residential. Real cost: Mirror replacement after fall: $2,000–$5,000 + injury risk + drywall damage. Properly mounting at design stage: just labor + minor framing ($500–$1,200 included in standard). Right answer: Frame in 2x6 horizontal blocking at 4' and 6' above floor before drywall. Mount mirror with mastic + J-channel + Z-clip. Detail in Home Gym Lighting & Acoustics: Toronto Buildout Guide.

Mistake 6: No Acoustic Dampening on Ceiling Below Bedroom

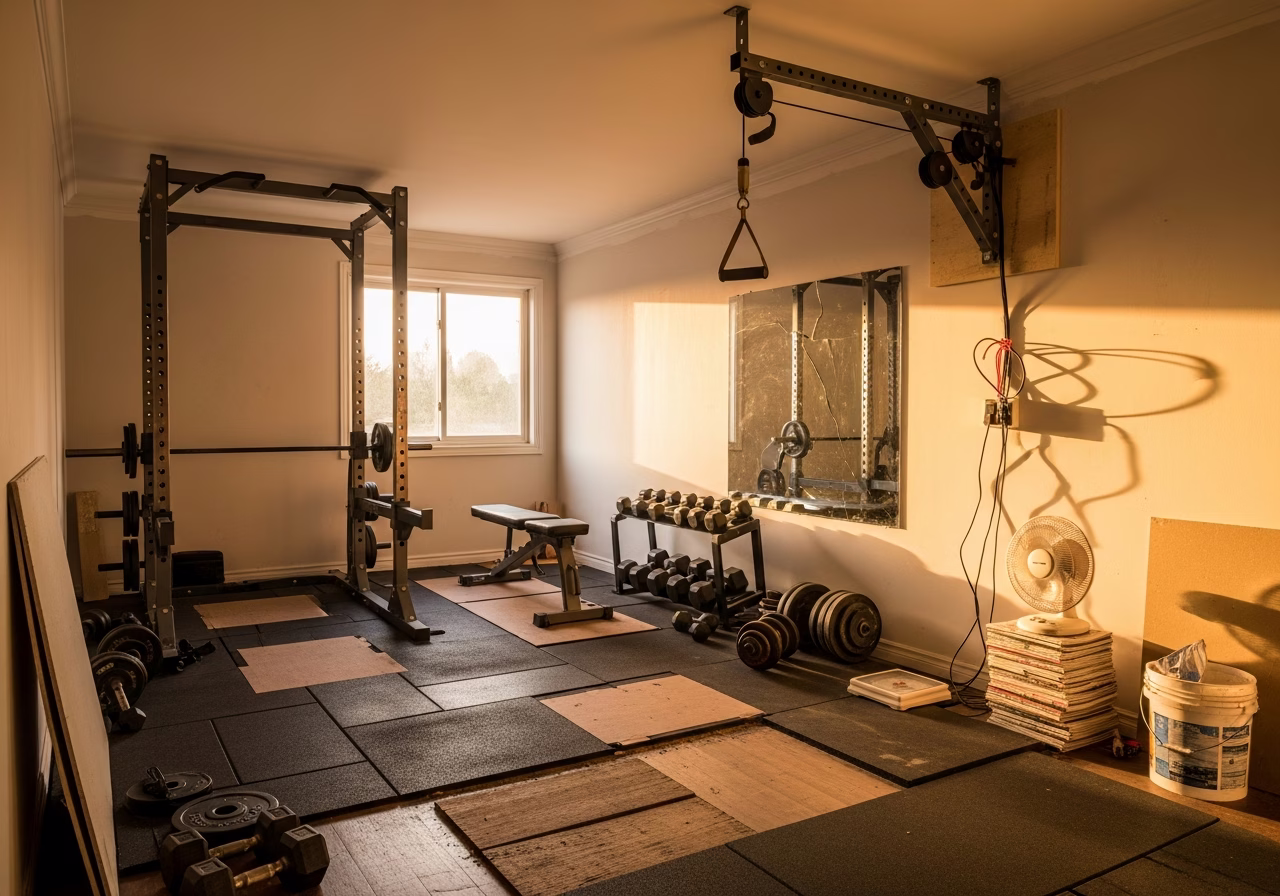

Home Gym Mistakes — finished result in a Toronto or GTA home by RenoHouse

The mistake: Drywall direct to joists with no Roxul, no resilient channel, no double drywall layer. The failure mode: Treadmill running upstairs sounds like a freight train in the bedroom. Dropped weights wake the entire house. Spouse stops sharing the home. Adherence drops because gym becomes "after kids are at school" only. Real cost: Standard ceiling dampening at rough-in: $2,500–$5,000. Retrofit (drywall removal + insulation + RC + double drywall): $7,500–$12,500. Right answer: Roxul Safe'n'Sound + resilient channel + 5/8" drywall ceiling at minimum. Premium tier: double resilient channel + double 5/8" drywall + Green Glue. Detail in Home Gym Lighting & Acoustics: Toronto Buildout Guide.

Mistake 7: No Moisture Management

The mistake: Installing rubber flooring directly on slab without moisture barrier. No assessment of basement moisture history. No vapor barrier on framed walls. The failure mode: Rubber traps moisture against slab. Mold grows under rubber within 12–24 months. Concrete eventually develops surface spalling. Equipment metal corrodes faster. Health concerns. Real cost: Removal of compromised flooring + slab remediation + new flooring: $5,500–$10,500. Plus potential mold remediation of adjacent areas: $3,000–$8,000. Right answer: Always run 6 mil poly moisture barrier under flooring. Address any active moisture issues before gym buildout (basement waterproofing $5K–$15K is its own scope). Run vapor barrier on framed walls per OBC.

Mistake 8: Ignoring Equipment Compatibility at Design Stage

The mistake: Building the gym without coordinating exact equipment placement and requirements. Tonal "I'll figure it out later," treadmill "I'll just plug it in." The failure mode: Tonal can't be installed because there's no backing in the wall. 240V circuit terminates 4 ft from where it needs to be. Treadmill in front of HVAC vent (terrible airflow). Mirror blocked by Tonal. Real cost: Drywall patching, electrical extensions, mirror reposition: $1,500–$4,500. Right answer: Confirm equipment list at design stage. Frame backing for Tonal/Mirror/TV at exact locations. Run electrical circuits to exact spots. Pre-coordinate everything. Detail in Best Home Gym Equipment 2026: Tonal, Peloton, Mirror, Tempo Compared.

Mistake 9: Skipping Permits and ESA Inspection

The mistake: "It's just a basement gym, I don't need a permit." DIY electrical or unlicensed contractor without ESA filing. The failure mode: Unpermitted work discovered at home sale (appraiser flags it, buyer's lawyer flags it). Insurance claim denied if related issue arises (electrical fire, code violation). Buyer demands $20K–$50K discount or escrow holdback. Real cost: Permit + ESA at the right time: $500–$900. Remediation at sale time: tens of thousands of dollars in price reduction or required upgrades to bring to compliance. Right answer: Pull all permits. Run all electrical through licensed electrician. ESA filing for every new circuit. Building permit for any framing or HVAC equipment.

Mistake 10: DIY Multi-Trade Project

The mistake: General contractor or homeowner managing 6+ trades sequentially without proper coordination. "I'll have my electrician come, then drywall, then flooring." The failure mode: Trades arrive without prep work done. Drywall closed before electrical inspection. Mirror installed before paint cures. Equipment delivered before flooring complete. Project slips 4–8 weeks beyond schedule. Quality compromised. Real cost: Project management is 8–15% of project cost when done right. DIY-managed projects routinely run 20–40% over budget on rework and delays. Right answer: Single project manager (general contractor with all trades in-house) coordinating everything. Detail in DIY vs Professional Home Gym Toronto: Real Cost Comparison.

Honourable Mentions (Not Top 10 But Real)

No future-proofing for sauna/plunge expansion — homeowner wants to add wellness suite later, electrical not pre-stubbed, plumbing not roughed in
Wrong color temperature LEDs — 2700K downlights give the gym a "tired bedroom" feel
Single ceiling fan or no air movement plan
No Wi-Fi mesh extension — connected fitness lags during streaming
Inadequate dehumidifier in summer-humid basement
No floor drain in wellness-suite-adjacent gym — future expansion requires breaking slab
Forgetting AV/data home-runs during electrical rough-in
No backing for future TV mount
Using residential-grade thin paint that scuffs immediately
No towel storage or hydration station (small but high daily-use friction)

Pattern: When You See These Mistakes Together

Most renovation horror stories involve 3–4 of these mistakes compounding. The classic pattern:

1. Cheap foam flooring (Mistake 1)
2. No HVAC plan (Mistake 3)
3. Single 120V circuit (Mistake 2)
4. No permits (Mistake 9)
5. DIY project management (Mistake 10)

Total upfront "savings": $8,000–$12,000.

Need professional home renovation?

Call RenoHouse at 289-212-2345 or get a free estimate today.

Get Free Estimate →

Total remediation cost: $25,000–$40,000.

Plus: 18 months of suboptimal use during the gradual realization.

What RenoHouse Does Differently

For every gym buildout we:

Run honest assessment at consultation (slab, ceiling height, electrical, moisture)
Quote with itemized costs (no allowance line items)
Pull all permits and run ESA inspections
Coordinate all trades in-house
Test under workout simulation before sign-off
Provide 1-year workmanship warranty + manufacturer warranties

For broader context, see our Basement Home Gym Toronto 2026 Guide and the DIY vs Professional Home Gym Toronto: Real Cost Comparison.

---

Avoiding these mistakes? RenoHouse builds gym projects right the first time — and remediates other contractors' work when it goes wrong. Book a free assessment on our basement home gym buildout service page.
